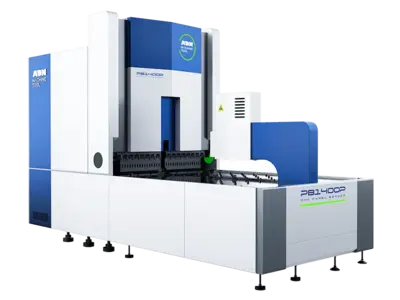

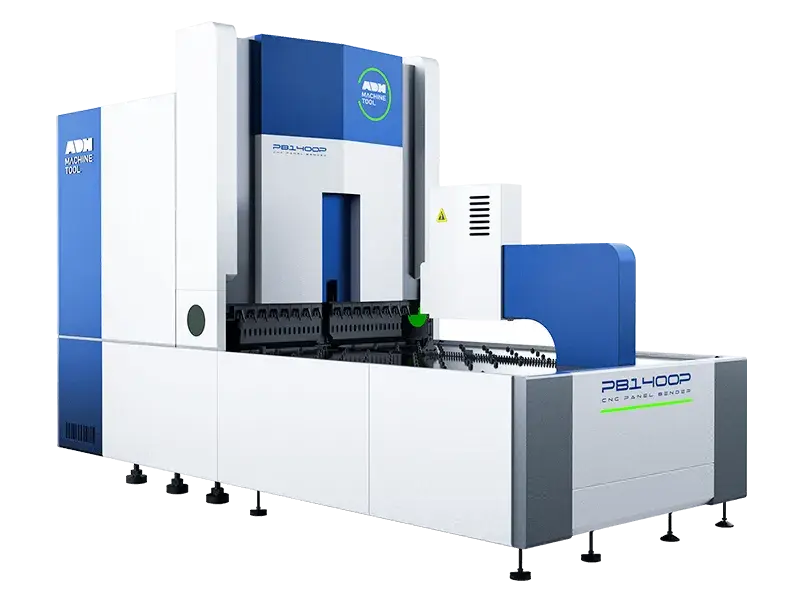

ADH PB-M Panel Bending Series
Have one to sell?
ConditionNew
1 available
New
ADH equipment is equipped with a pressure arm design that enables the fabrication of sheet metal up to a maximum bending size of 2500mm x 1250mm. With a remarkable bending speed of only 0.2 seconds per bend, this machine delivers precise and rapid bending, ensuring high accuracy in the final product.
PB-M Series – Spec Range
Maximum Bending Width: 1600 – 3200 mm
Maximum Bending Thickness (304 Stainless):1.5 mm
Maximum Bending Thickness (Cold Plate): up to 2 mm
Maximum Bending Thickness (Aluminum): up to 3 mm
Fastest Bending Speed: 0.2 s
Bending Height: 180 mm
Minimum Material Thickness: 0.35 mm
Minimum Inner Dimension (Four-Side Forming): 280 × 180 mm
Minimum Inner Dimension (Two-Side Forming): 180 mm
Rated Voltage: 380 V
Total Power: ~38 – 154 kW
