FROGMILL 3D 4th AXIS
Have one to sell?
$65,000.00 USD
ConditionUsed
1 available

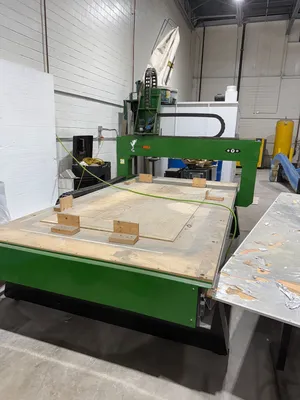

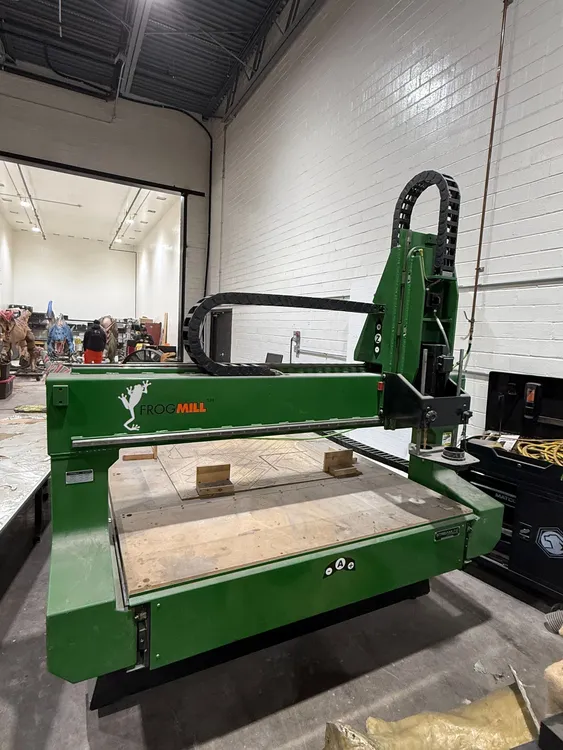

The FROGMill™ is a heavy-duty 4-axis CNC router built for serious 3D machining. With a 26" Z-stroke, full 4th-axis capability, and a rigid steel frame, it handles large foam, wood, acrylic, and MDF projects with speed and precision. Perfect for molds, patterns, props, and oversized parts.
Key Features:
Heavy-duty steel frame construction
AC servo motors with direct-drive system
26" Z-axis stroke with 16" gantry clearance
Full 4th-axis capability for 3D machining (up to 4' diameter × 8' length)
Rapid traverse speed: 1200 IPM
Cutting speed: 1000 IPM
Accuracy: 0.001"
Repeatability: ±0.002"
Machine Specifications:
Overall Dimensions: 144.13" L × 87.56" W × 95.31" H
Weight: 2,500 lbs
Process Area: 124" × 64"
Max Column Diameter: 46"
Max Column Length: 99.5"
Spindle: 5.5 HP, supports up to 1" collet
Electrical Requirements: 208–240V, 30A, 3-Phase
Motion System: Rack-and-pinion on all axes
Connectivity: TCP/IP network interface
