New AMS MCV 450 | Vertical Machining Centers

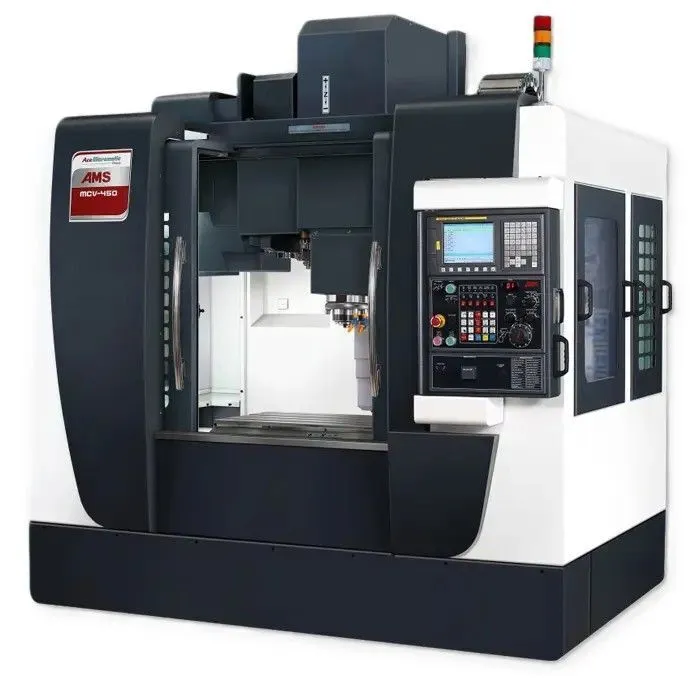

AMS MCV-450 Vertical Machining Center –

**Travels**
- X-Axis: 31.5" (800 mm)
- Y-Axis: 20.5" (520 mm)
- Z-Axis: 24.0" (610 mm)
- Spindle nose to table: 5.9" – 29.9" (150 – 760 mm)

**Table**
- Size: 35.4" × 20.5" (900 × 520 mm)
- T-Slots: 5 × 0.71" on 3.94" centers
- Max load: 1,760 lb (800 kg)

**Spindle**
- Speed: 8,000 RPM (10,000 / 12,000 RPM optional)
- Taper: BT-40 (CAT-40 / BBT-40 optional)
- Power: 15/20/25 HP (11/15/18.5 kW)
- Drive: Belt (Direct-drive 12k optional)

**Feed / Rapid Rates**
- Rapids X/Y/Z: 1,417 / 1,417 / 1,181 IPM (36/36/30 m/min) – 12k option: 1,890 IPM all axes
- Cutting feed: 0.04 – 394 IPM (1 – 10,000 mm/min)

**ATC**
- Type: Twin-arm
- Capacity: 24 tools (30-tool optional)
- Max tool dia/weight/length: Ø3.5" (90 mm) / 15.4 lb (7 kg) / 11.8" (300 mm)

**Construction**
- Meehanite cast iron, heavy-duty box ways on all axes
- 30° slanted one-piece bed for excellent chip flow
- Controller: Fanuc 0i-MF Plus (optional Siemens/Mitsubishi)

**Accuracy**
- Positioning: ±0.0002" (±0.005 mm)
- Repeatability: ±0.0001" (±0.003 mm)

**Dimensions & Weight**
- Floor space: ~110" × 90" × 110" (2,800 × 2,300 × 2,800 mm)
- Weight: ~13,200 lb (6,000 kg)

Perfect mid-size workhorse for mold & die, aerospace frames, and general precision machining at an outstanding price-to-performance ratio.
