CAMPRO NU-170C 5 axis
Have one to sell?
ConditionNew
1 available
New

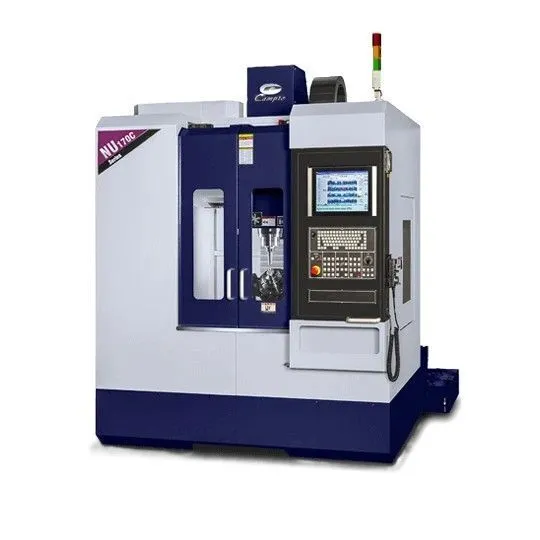

The NU-170C is a compact, high-precision 5-axis vertical machining center from Campro's NU Series, designed for efficient multi-surface and complex-shape machining. Ideal for small components in aerospace, automotive, medical, and job shop applications, it features a trunnion-style tilting rotary table for versatile 5-axis operations without the footprint of larger swivel-head machines.
Category,Specification
Travels,"X: 15.7"" (400 mm)
Y: 16.9"" (430 mm)
Z: 18.9"" (480 mm)"
Table,"Size: Ø13.8"" (350 mm)
Max Load: 220 lbs (100 kg)"
Rotary Axes,"A-Axis (Tilt): ±100°
C-Axis (Table): 360° continuous"
Spindle,"Speed: 8,000–12,000 RPM (BT-40 taper)
Power: 15 HP (11 kW)"
Feedrates,"Rapids: 1,181 IPM (30 m/min) on all linear axes"
Tool Changer,20-tool disc-type ATC (arm-type)
Accuracy,"Positioning: ±0.0008"" (±0.02 mm)
Repeatability: ±0.0004"" (±0.01 mm)"
Machine Dimensions,"Footprint: ~86"" x 94"" x 104"" (2,200 x 2,400 x 2,650 mm)
Weight: ~7,700 lbs (3,500 kg)"
