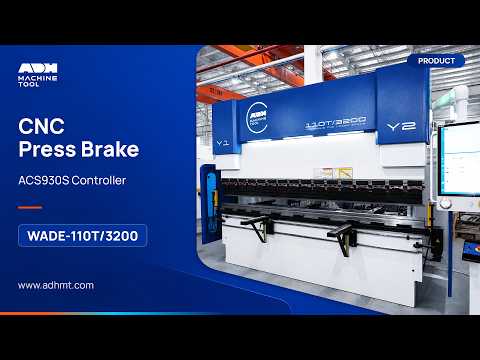

ADH Press Brake WAD/WADE Series
Have one to sell?
ConditionNew
1 available
New
ADH team identified the growing trend towards energy conservation, efficiency, and environmental protection. As a result, they initiated the development and production of the WAD/WADE series press brakes. In contrast to traditional press brakes, the WAD/WADE series leverages a servo system that allows the pump and main motor to rest while the plunger remains idle. This innovative approach has led to significant energy savings without compromising productivity
Spec Range
Model Range: 50/1200T
Bending Length: 1300/8000mm
Bending Force: 500 – 12,000 kN
Distance Between Uprights: 1120 – 6300 mm
Throat Depth: 250 – 600 mm
Slider Stroke: 150 – 400 mm
Backgauge X-Axis Stroke: 500 - 980 mm
Backgauge X-Axis Speed: 200 – 350 mm/s
Backgauge R-Axis Stroke: 200 mm (where applicable)
Backgauge R-Axis Speed: 200 mm/s (where applicable)
Main Motor Power: 8.4 – 2x47.5 kW
Oil Tank Capacity: 130 – 2300 L
Machine Weight: 3.7 – 127 T
