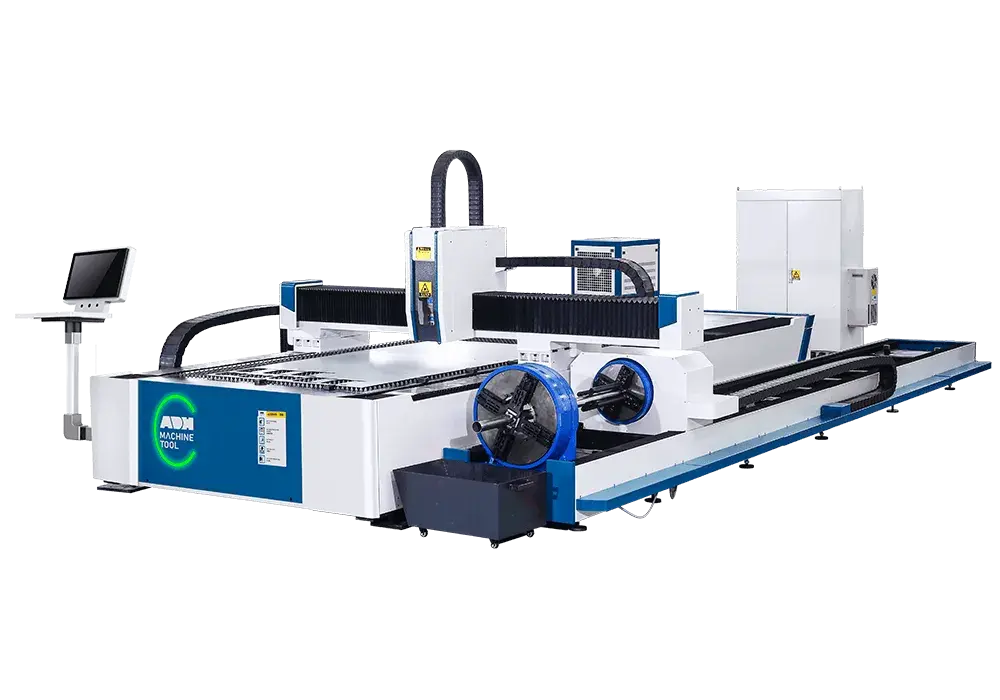

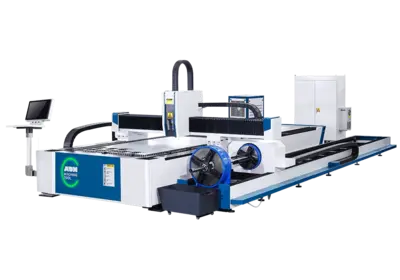

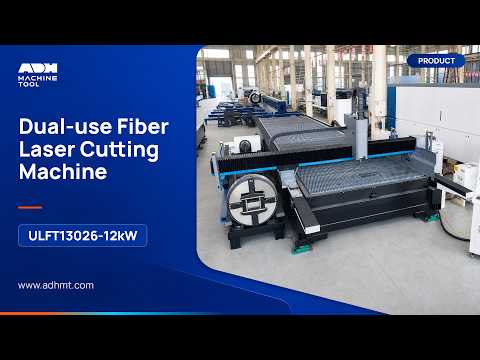

ADH ULFT Dual-use Fiber Laser Series
Have one to sell?
ConditionNew
1 available
New
The integrated design enables efficient cutting of both plates and tubes with a single piece of equipment. It provides high precision, fast processing, minimal kerf, smooth sections, user-friendly operation, and low energy consumption. Additionally, it is highly suitable for large-scale continuous processing.
ULFT Series – Spec Range
Laser Power: 1,000 – 6,000 W
Sheet Cutting Area: 3000 × 1500 mm – 6000 × 1500 mm
Tube Cutting Length: Up to 6000 mm
Round Tube Diameter: Up to Ø220 mm
Square Tube Size: 20 × 20 – 150 × 150 mm
Maximum Positioning Speed: up to 120 m/min
Maximum Acceleration: 1.2 G
Positioning Accuracy: ±0.05 mm
Repeat Positioning Accuracy: ±0.03 mm
Maximum Chuck Rotation Speed: ~120 rpm
Operating Voltage: 380 V / 50 Hz
Cooling Method: Water Cooling
