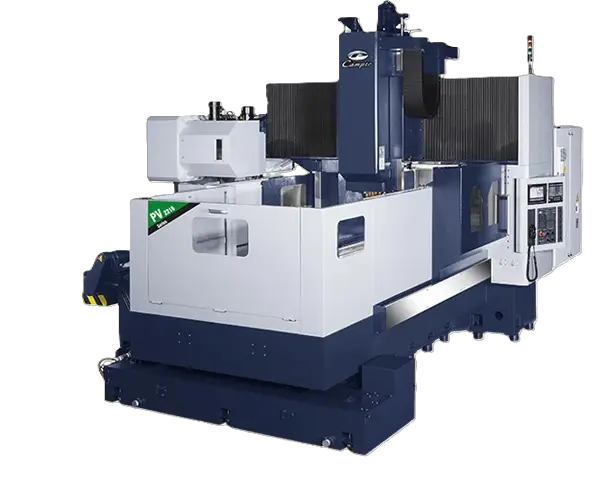

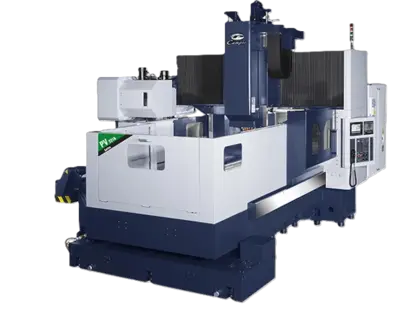

CAMPRO PV-2216
Have one to sell?
ConditionNew
New
MACHINE FEATURES:
• 35 HP 6,000 rpm Gear-head spindle
• One-piece casting design in ram and gear box
• Box guideways on Z-axis is excellent for heavy-duty cutting
• Stepped type design shifts the gravity center toward crossbeam
• Crossbeam guideways with max. span design
• Roller linear on Y axis increases rigidity while in axial and lateral directions
• The base is made of pure casting structure ensuring long term accuracy and stability
• Optimal span between guideways supports working table
• One-piece cast base with two-chip slots minimizes cleaning time and provides higher durability
and leakage prevention
• Roller linear guideways on X-axis increases table loading capacity and rigidity
STANDARD FEATURES:
* Fanuc 0i-MF PLUS Type 1
* AICC2+
* 6,000 RPM Spindle with Geared Head (10,000 RPM Built In Spindle Optional)
* Spindle Oil Chiller
* Powerful 35 HP high torque spindle motor
* High Column (37.4” Spindle nose to table)
* Cartridge Spindle Design
* CAT50 Big Plus Spindle
* Coolant thru spindle prep (290 PSI Coolant thru Spindle System Optional)
* Spindle Air Blow
* Rigid tapping
* Twin Arm 32 Tool ATC
* Portable Manual pulse generator
* Program and data protection key switch
* Massive One-piece Meehanite cast iron bed
* X & Y Heavy Duty Roller Type Guideways
* Z axis Heavy Duty Box Way
* Two Chip Augers
* Chip Conveyor (W/ Bucket)
* Double Anchored, Pre-tensioned Ballscrews
* Fast X & Y - 787, Z - 630 IPM Rapid Traverse rate
* Flood coolant with large coolant tank
* Work light
* Heat exchanger for Electrical Cabinet
* Automatic Lubrication Unit
* Instruction manual, parts list, and electrical diagram
* Fanuc operator and maintenance manuals
* One-year Parts warranty: Parts w/o Labor
* Two-year NC Control Warranty: Parts and Labor
TABLE:
Table loading area 90.50” x 57.08”
Allowable table load 13,227 lbs.
T Slots, width x spacing x # slots .86” X 8”
SPINDLE:
Spindle taper CAT-50 Big Plus
Spindle RPM 6,000 RPM
Spindle Power Output 35 HP
Spindle torque 621 ft. lbs.
Spindle Driving Method Gear Type
FEED:
X axis travel 86.60”
Y axis travel 62.98”
Z axis travel 29.52”
Spindle nose to table surface 7.87” – 37.40”
Distance between Columns 68.89”
Rapid Traverse X and Y axis 787 IPM
Rapid Traverse Z axis 629.9 IPM
AUTOMATIC TOOL CHANGER:
Number of Tools 32
Tool Shank CAT 50 Big Plus
Max. Tool Dia. 4.92
With adjacent pocket open 8.46
Max. Tool Length 13.7 inches
Max. Tool Weight 44.1 lbs.
Tool Selection Method Random
TANK CAPACITY:
Coolant Tank 53 Gallons
Lubricating Tank .5 Gallons
Hydraulic Tank 30 Gallons
POWER SUPPLY:
Electric Power Supply Voltage / KVA 220V 3 Phase (60HZ) / 40
Minimum Air Supply 85 PSI (3/8 ID Supply Hose)
FEED AND ACCURACY:
Cutting feed rate 393 IPM
Least command increment .001mm
Positioning accuracy +/- .00020" (full stroke)
Repeatability +/- .00008"
MACHINE:
Floor Space Required (L X W) 259.8" x 188.9"
Height 155.51”
Machine Weight 55,115 lbs.
