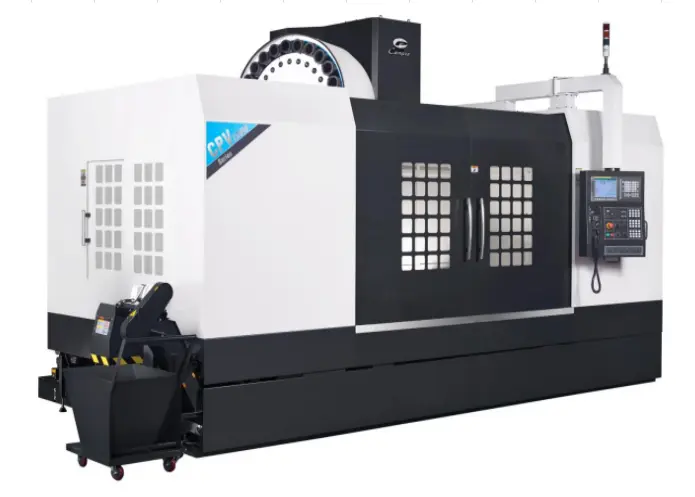

CAMPRO CPB-2200B
Have one to sell?
ConditionNew
New
MACHINE FEATURES
●Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring
maximum rigidity and accuracy.
●Box ways on all 3 axes greatly upgrades stability and dampening capability.
●Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.
●Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
STANDARD FEATURES:
* Fanuc Oi-MF Control
* AI APC Contour Control
* 6,000 RPM Spindle (ZF Gearbox)
* Powerful 25 hp (30 min) high torque spindle motor
* CAT50 Big Plus Spindle
* 1000 PSI CTS Prep Only
* Spindle Air Blow
* Rigid tapping
* Custom Macro B (User Definable)
* Twin Arm 24 Tool ATC
* Tool Change Time (Tool To Tool) 3.5 sec.
* Tool Change Time (Chip to Chip) 7.0 sec.
* Portable Manual pulse generator
* Program and data protection key switch
* Massive One-piece Meehanite cast iron bed
* Chip Auger
* 4th Axis Prep (no amplifier)
* Low friction turcite mating way surfaces
* Double Anchored, Pre-tensioned ballscrews
* Full enclosure splash guard
* Flood coolant with large coolant tank
* Work light (2)
* Operator call lamp (red, yellow, green)
* Spindle load meter
* Assembly and operation tools
* Auto Power Off
* Heat exchanger for Electrical Cabinet
* Instruction manual, parts list, and electrical diagram
* Fanuc operator and maintenance manuals
* WARRANTY-MACHINE: ONE YEAR Parts
* WARRANTY-CONTROL: TWO YEARS: Parts and Labor
CAPACITY:
X axis travel 86.6”
Y axis travel 40.1”
Z axis travel 31.4”
Table loading area 94.4” x 40.1”
Allowable table load 6,613 lbs
SPINDLE:
Spindle nose to table top 7.8” – 39.3”
Column to spindle center 41.3”
Spindle taper CAT 50 Big Plus
Spindle speed 6,000 RPM
A.C. spindle motor (30 min.) 25 HP
Spindle torque (30 min) 384 ft-lbs.
Spindle Driving Method ZF Gearbox
AUTOMATIC TOOL CHANGER:
ATC Type Twin Arm Type
Number of Tools 24
Max. Tool Weight 33 lbs. (15 KG)
Max. Tool Length 11.8” (300 MM)
Max. Tool Dia. 4.3” (110 MM)
Max tool Diameter (No Adjacent Tool) 7.8” (200 MM)
Tool Change Time TOOL – TOOL 3.5 sec
Tool Change Time CHIP – CHIP 7.0 sec
Tool Selection Random Bi-Directional
Tool Shank CAT 50
MOTION:
X and Y axis rapid traverse rate 472 IPM
Z axis rapid traverse rate 393 IPM
Cutting feed rate 393 IPM (10 m/min)
Slide Type Box Ways
Least command increment .001mm,
Positioning accuracy +/- .00020" (full stroke)
Repeatability +/- .00008"
GENERAL:
Floor Space Required (W x D X H / INCHES) 231” x 156” X 136”
Machine Weight 48,500 lbs
Standard Power Source Requirement - Fanuc 205-235 Volts / 3 Phase/60HZ
Power Capacity 83 AMPS (30 KVA)
Air Source Requirement 85 – 115 PSI (3/8 ID Supply Hose)
