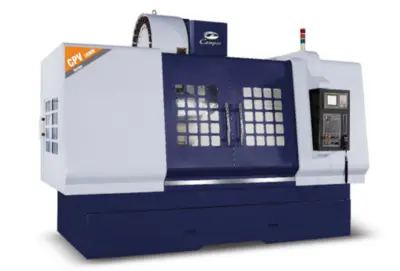

CAMPRO CPV-1600B
Have one to sell?
ConditionNew
New
MACHINE FEATURES:
●Constructed with high quality meehanite cast iron and heat treated to relieve stress there by assuring
maximum rigidity and accuracy.
●Box ways on all 3 axes greatly upgrades stability and dampening capability.
●Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.
●Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
The CPV-1600B is designed for heavy cutting, long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value.
Please note that features and specifications are subject to change and should be verified at the time of order.
STANDARD FEATURES:
* Fanuc 0i-MF PLUS Control Type 1
* AICC2+
* 6,000 RPM Spindle
* Powerful 35 hp (10 min) high torque spindle motor
* CAT50 Big Plus Spindle
* 1000 PSI Coolant Through Spindle Prep
* Spindle Air Blow
* Rigid tapping
* Custom Macro B (User Definable)
* Twin Arm 24 Tool ATC
* Tool Change Time (Tool To Tool) 3.5 sec.
* Tool Change Time (Chip to Chip) 7.0 sec.
* Portable Manual pulse generator
* Program and data protection key switch
* Massive One-piece Meehanite cast iron bed
* Chip Auger
* 4th Axis Prep (no amplifier)
* Low friction turcite mating way surfaces
* Double Anchored, Pre-tensioned ballscrews
* Full enclosure splash guard
* Flood coolant with large coolant tank
* Work light (2)
* Operator call lamp (red, yellow, green)
* Spindle load meter
* Assembly and operation tools
* Auto Power Off
* Heat exchanger for Electrical Cabinet
* Instruction manual, parts list, and electrical diagram
* Fanuc operator and maintenance manuals
* MACHINE WARRANTY: ONE YEAR Parts only
* CONTROL WARRANTY: TWO YEARS: Parts and Labor
CAPACITY:
X axis travel 62.9”
Y axis travel 32.6”
Z axis travel 27.5”
Table loading area 70.8” X 31.4”
Allowable table load 4,409 pounds
Table T Slots - width x slot spacing .8” x 6” x 4.9”
SPINDLE:
Spindle nose to table top 5.9” – 33.4”
Column to spindle center 33.4”
Spindle taper CAT 50 Big Plus
Spindle speed 6,000 RPM
A.C. spindle motor (30 min.) 35 HP
Spindle torque (30 min) 390 ft-lbs.
Spindle Driving Method Two Speed Gearbox
AUTOMATIC TOOL CHANGER:
ATC Type Twin Arm Type
Number of Tools 24
Tool Shank CAT 50
Max. Tool Dia. 4.3”
Max tool Diameter (No Adjacent Tool) 7.8”
Max. Tool Length 11.8”
Max. Tool Weight 33 lbs.
Tool Change Time TOOL – TOOL 3.5 sec
Tool Change Time CHIP – CHIP 7.0 sec
Tool Selection Random Bi-Directional
MOTION:
X and Y axis rapid traverse rate 590 IPM
Z axis rapid traverse rate 472 IPM
Cutting feed rate 393 IPM
Slide Type Box Ways
Least command increment .001mm,
Positioning accuracy +/- .00020" (full stroke)
Repeatability +/- .00008"
GENERAL:
Floor Space Required (W x D X H / INCHES) 169 x 127 x 125
Machine Weight 33,069lbs.
Standard Power Source Requirement - Fanuc 205-235 Volts / 3 Phase/60HZ
Power Capacity 78 AMPS
Air Source Requirement 85 – 115 PSI (3/8 ID Supply Hose)
*Geometric accuracies are guaranteed only if machine is installed on foundation meeting the
minimum requirements of the machine and local building codes.
