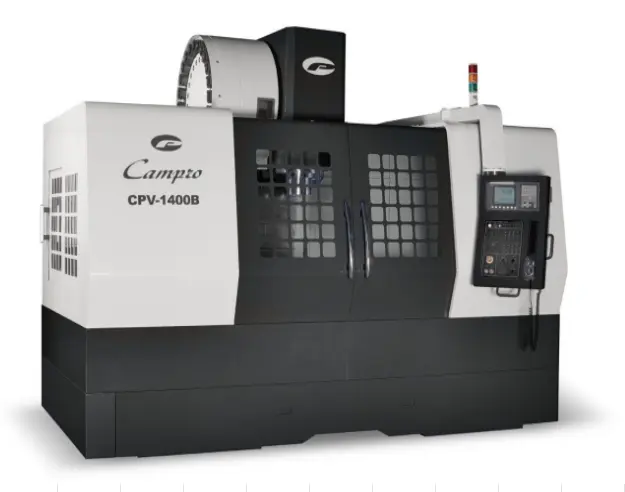

CAMPRO CPV-1400B
Have one to sell?
ConditionNew
New
MACHINE FEATURES
●Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring
maximum rigidity and accuracy.
●Box ways on all 3 axes greatly upgrades stability and dampening capability.
●Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for
environmental protection.
●Oil-coolant separation design which meets the environment protection requirements allows centralized collection for all way oil.
STANDARD FEATURES:
* Fanuc Oi-MF Control
* AI APC Contour Control
* 6,000 RPM Geared Head Spindle
* Powerful 25 hp (30 min) high torque spindle motor
* CAT50 Big Plus Spindle
* 1000 PSI CTS Prep Only
* Spindle Air Blow
* Rigid tapping
* Custom Macro B (User Definable)
* Twin Arm 24 Tool ATC
* Tool Change Time (Tool To Tool) 3.5 sec.
* Tool Change Time (Chip to Chip) 7.0 sec.
* Portable Manual pulse generator
* Program and data protection key switch
* Massive One-piece Meehanite cast iron bed
* Chip Auger
* 4th Axis Prep (no amplifier)
* Low friction turcite mating way surfaces
* Double Anchored, Pre-tensioned ballscrews
* 590 IPM Rapid Traverse Rate
* Full enclosure splash guard
* Flood coolant with large coolant tank
* Work light (2)
* Operator call lamp (red, yellow, green)
* Spindle load meter
* Assembly and operation tools
* Auto Power Off
* Heat exchanger for Electrical Cabinet
* Instruction manual, parts list, and electrical diagram
* Fanuc operator and maintenance manuals
* WARRANTY-MACHINE: ONE YEAR Parts only
* WARRANTY-CONTROL: TWO YEARS: Parts and Labor
CAPACITY:
X axis travel 55.1” (1,400 MM)
Y axis travel 29.5” (750 MM)
Z axis travel 27.5” (700 MM)
Table loading area 70.8” X 31.4” (1,800 X800MM)
Allowable table load 3,968 lbs. (1,800 KG)
Table T Slots - width x slot spacing x # of slots .8” x 5.1” x 5 (22 X 130 MM)
SPINDLE:
Spindle nose to table top 5.9” – 33.5” (150-850 MM)
Column to spindle center 30.7” (780 MM)
Spindle taper CAT 50 Big Plus
Spindle speed 6,000 RPM
A.C. spindle motor (30 min.) 25 HP
Spindle torque (30 min) 384 ft-lbs.
Spindle Driving Method Geared Head Spindle
AUTOMATIC TOOL CHANGER:
ATC Type Twin Arm Type
Number of Tools 24
Max. Tool Weight 33 lbs. (15 KG)
Max. Tool Length 11.8” (300 MM)
Max. Tool Dia. 4.3” (110 MM)
Max tool Diameter (No Adjacent Tool) 7.8” (200 MM)
Tool Change Time TOOL – TOOL 3.5 sec
Tool Change Time CHIP – CHIP 7.0 sec
Tool Selection Random Bi-Directional
Tool Shank CAT 50
MOTION:
Rapid traverse rate, all axes 590 IPM (15 m/min)
Cutting feed rate 393 IPM (10 m/min)
Slide Type Box Ways
Least command increment .001mm,
Positioning accuracy +/- .00020" (full stroke)
Repeatability +/- .00008"
GENERAL:
Floor Space Required (W x D X H / INCHES) 153” X 127.8” X 118.5”
Machine Weight 25,353 lbs. (11,500 KG)
Standard Power Source Requirement - Fanuc 205-235 Volts / 3 Phase/60HZ
Power Capacity 83 AMPS (30 KVA)
Air Source Requirement 85 – 115 PSI (3/8 ID Supply Hose)
