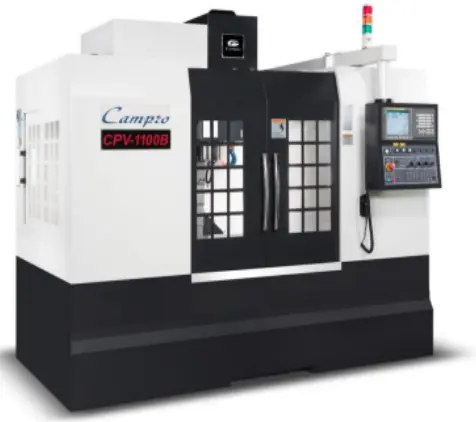

CAMPRO CPV-1100B
Have one to sell?
ConditionNew
New
MACHINE FEATURES
●Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring
maximum rigidity and accuracy.
●Box ways on all 3 axes greatly upgrades stability and dampening capability.
●Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for
saving cost and for environmental protection.
●Oil-coolant separation design which meets the environment protection requirements allows centralized
collection for all way oil.
STANDARD FEATURES:
* Fanuc Oi-MF Control (Package 1)
* AI APC Contour Control
* 12,000 RPM Spindle (Belt Drive)
* Powerful 20 hp (30 min) high torque spindle motor
* High Column (20.9” + 9.8”)
* Cartridge Spindle Design
* CAT40 Big Plus Spindle
* 1000 PSI Coolant Through Spindle Prep
* Spindle Air Blow
* Rigid tapping
STANDARD FEATURES (CONT’D):
* Custom Macro B (User Definable)
* Twin Arm 24 Tool ATC
* Portable Manual pulse generator
* Massive One-piece Meehanite cast iron bed
* Chip Auger
* 4th Axis Prep (no amplifier)
* Low friction Turcite mating way surfaces
* Double Anchored, Pre-tensioned Ballscrews
* Fast 787 IPM Rapid Traverse rate
* Full enclosure splash guard
* Flood coolant with large coolant tank
* Work light
* Operator call lamp (red, yellow, green)
* Spindle load meter
* Assembly and operation tools
* Auto Power Off
* Heat exchanger for Electrical Cabinet
* Instruction manual, parts list, and electrical diagram
* Fanuc operator and maintenance manuals
* WARRANTY-MACHINE: One-Year
* WARRANTY-CONTROL: Two-Year Parts and Labor
CAPACITY:
X axis travel 43.3”
Y axis travel 24.4”
Z axis travel 23.6”
Table loading area 47.2” x 23.6”
Allowable table load 2,425 pounds
SPINDLE:
Spindle nose to table top 4.7” – 28.3”
Column to spindle center 26.3”
Spindle taper CAT 40 Big Plus
Spindle speed 12,000 RPM
A.C. spindle motor (30 min.) 20 HP
Spindle torque (30 min) 132 ft-lbs.
Spindle Driving Method Belt Drive
AUTOMATIC TOOL CHANGER:
ATC Type Twin Arm Type
Number of Tools 24
Tool Shank CAT 40
Max. Tool Dia. 3.1”
Max tool Diameter (No Adjacent Tool) 5.9”
Max. Tool Length 9.8”
Max. Tool Weight 15.4 lbs.
Tool Selection Random Bi-Directional
MOTION:
X and Y axis rapid traverse rate 787 IPM
Z axis rapid traverse rate 787 IPM
Cutting feed rate 393 IPM
Slide Type Box Ways
Least command increment .001mm,
Positioning accuracy +/- .00020" (full stroke)
Repeatability +/- .00008"
GENERAL:
Floor Space Required (W x D X H) 131" x 106" X 113”
Machine Weight 14,330 lbs.
Standard Power Source Requirement - Fanuc 205-235 Volts / 3 Phase/60HZ
Power Capacity 53 Amps Minimum
Air Source Requirement 85 – 115 PSI
