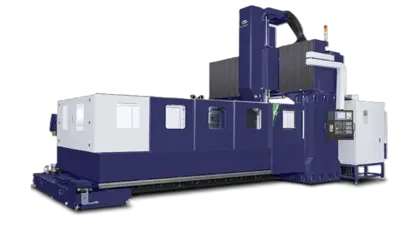

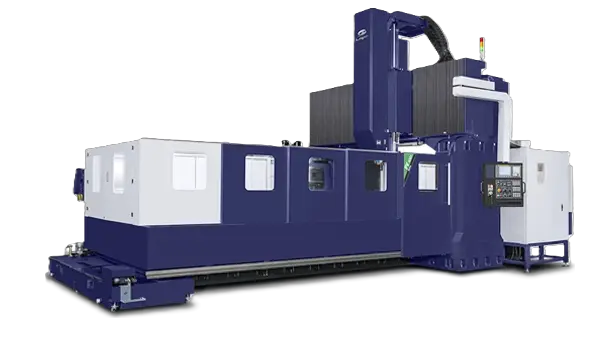

CAMPRO PV-5221
Have one to sell?
ConditionNew
1 available
New
STANDARD FEATURES:
* Fanuc Oi-MF Plus Control
* AI APC Contour Control
* 6,000 RPM Spindle (Gear Head)
* Spindle Oil Chiller
* Powerful 30 HP high torque spindle motor
* High Column 39.3” Spindle Nose To Table
* Cartridge Spindle Design
* CAT50 Big Plus Spindle
* 1000 PSI CTS Prep
* Spindle Air Blow
* Rigid tapping
* Twin Arm 32 Tool ATC
* Tool Change Time (Tool-To-Tool) 3.5 sec.
* Tool Change Time (Chip to Chip) 7.0 sec.
* Portable Manual pulse generator
* Program and data protection key switch
* X & Y Heavy Duty Linear Guides (Rpller)
* Z axis box way
* Chip Auger
* Chip Conveyor (W/ Bucket)
* Double Anchored, Pre-tensioned Ballscrews
* Fast X & Y - 787, Z - 630 IPM Rapid Traverse rate
* Flood coolant with large coolant tank
* Work light
* Heat exchanger for Electrical Cabinet
* Automatic Lubrication Unit
* Instruction manual, parts list, and electrical diagram
* Fanuc operator and maintenance manuals
* One-year Parts warranty: Parts w/o Labor
* Two-year NC Control Warranty: Parts and Labor by Fanuc
CAPACITY:
X axis travel 204.72” (5200MM) xx
Y axis travel 82.68” (2100MM)
Z axis travel 31.49” (1000MM)
Table loading area 196.85 x 66.93” (5000x1700MM)
Allowable table load 26,455 lbs (12,000kg)
Distance Between Columns 86.6” (2200MM)
SPINDLE:
Spindle nose to table surface 7.84” – 39.3”
Spindle speed 6,000 RPM
Spindle Power Output 30HP
Spindle torque (max 30 min) 746 FT-LBS (1011 Nm.)
Spindle Driving Method Gear Type
AUTOMATIC TOOL CHANGER:
ATC Type Twin Arm Type
Number of Tools 32
Tool Shank CAT 50 BIG PLUS
Max. Tool Dia. 4.92” (125 MM)
Max. Tool Length 13.7” (350MM)
Max. Tool Weight 44 lbs. (20 KG)
Tool Selection Method Random Bi-Directional
Tool Change Time TOOL-TOOL 3.5 sec
Tool Change Time CHIP-CHIP 7 sec
MOTION:
Rapid Traverse X, Y, Z 393.7 / 472.44 / 472.44ipm
Cutting feed rate 314.96 IPM
Slide Type X Y Roller Guide, Box on Z
Least command increment .001mm
Positioning accuracy +/- .00020" (full stroke)
Repeatability +/- .00008"
GENERAL:
Floor Space Required (L X W) 503.94 x 196.85” (12,800x5000MM)
Height 165.35” (4200MM)
Machine Weight 92,594 lbs. (42,000 kg)
Standard Power Source Requirement – Fanuc 205-235 V / 3 Phase/60HZ
Power Capacity 105 AMPS (40 KVA)
Minimum Air Supply 85 – 115 PSI (3/8 ID Air Hose)
