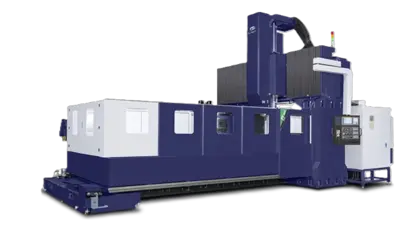

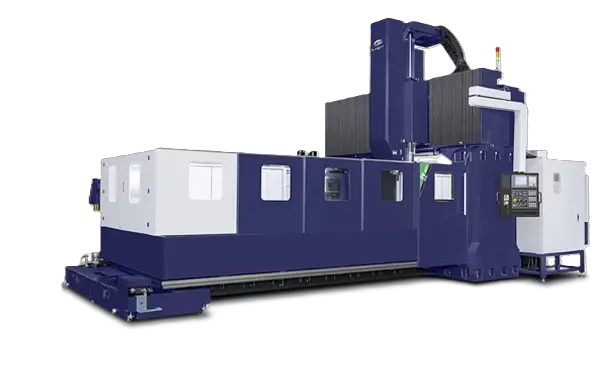

CAMPRO PV-3221
Have one to sell?
ConditionNew
1 available
New
STANDARD FEATURES:
* Fanuc Oi-MF Plus Control
* AI APC Contour Control
* 6,000 RPM Spindle with Gear Head (10,000 RPM Built In is optional)
* Spindle Oil Chiller
* Powerful 35 HP high torque spindle motor
* High Column (37.4” Spindle nose to table)
* Cartridge Spindle Design
* CAT50 Big Plus Spindle
* 1,000 PSI Coolant thru spindle prep
* Spindle Air Blow
* Rigid tapping
* Twin Arm 32 Tool ATC
* Portable Manual pulse generator
* Program and data protection key switch
* Massive One-piece Meehanite cast iron bed
* X & Y Heavy Duty Linear Guides
* Z axis Heavy Duty Box Way
* Chip Auger
* Chip Conveyor (W/ Bucket)
* Double Anchored, Pre-tensioned Ballscrews
* Fast X & Y - 787, Z - 630 IPM Rapid Traverse rate
* Flood coolant with large coolant tank
* Work light
* Heat exchanger for Electrical Cabinet
* Automatic Lubrication Unit
* Instruction manual, parts list, and electrical diagram
* Fanuc operator and maintenance manuals
* One-year Parts warranty: Parts
* Two-year NC Control Warranty: Parts and Labor by
control builder
TABLE:
Table loading area 118.1” x 66.9”
Allowable table load 17,636 lbs.
T Slots, width x spacing x # slots .86” X 11
SPINDLE:
Spindle taper CAT-50 Big Plus
Spindle RPM 6,000 RPM
Spindle Power Output (max 15 min.) 35 HP
Spindle torque (max 15 min) 621 ft. lbs.
Spindle Driving Method Gear Type
FEED:
X axis travel 125.98”
Y axis travel 82.6”
Z axis travel 31.49”
Spindle nose to table surface 7.87” – 39.37”
Distance between Columns 86.6”
Rapid Traverse X axis 472 IPM
Rapid Traverse Y axis and Z axis 590.5 IPM
AUTOMATIC TOOL CHANGER:
Number of Tools 32
Tool Shank CAT 50 Big Plus
Max. Tool Dia. 4.92
With adjacent pocket open 8.46
Max. Tool Length 13.7 inches
Max. Tool Weight 44.1 lbs.
Tool Selection Method Random
TANK CAPACITY:
Coolant Tank 53 Gallons
Lubricating Tank .5 Gallons
Hydraulic Tank 30 Gallons
POWER SUPPLY:
Electric Power Supply Voltage / KVA 220V 3 Phase (60HZ) / 40
Minimum Air Supply 85 PSI (3/8 ID Supply Hose)
FEED AND ACCURACY:
Cutting feed rate 393 IPM
Least command increment .001mm
Positioning accuracy +/- .00020" (full stroke)
Repeatability +/- .00008"
MACHINE:
Floor Space Required (L X W) 346.5" x 196"
Height 155.51”
Machine Weight 77,161 lbs.
