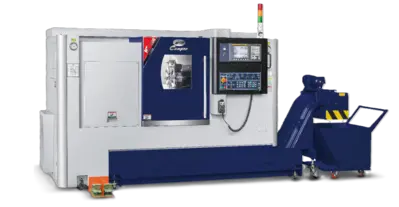

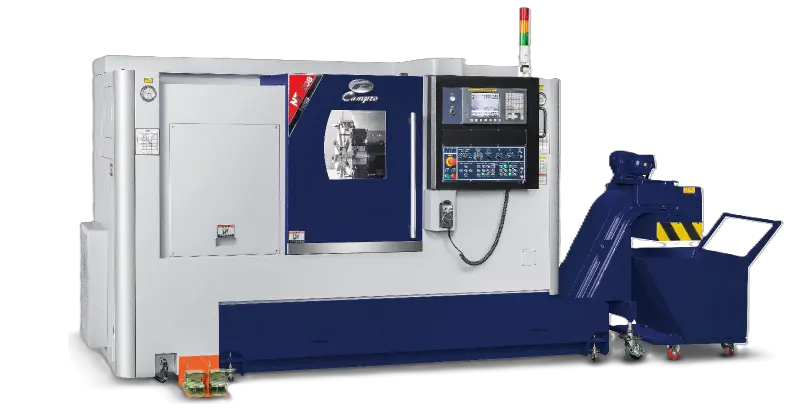

CAMPRO NT-208
Have one to sell?
ConditionNew
1 available
New
• The NT-208 is Campro's highly flexible and profitable CNC Turning Center
• High performance heavy duty box guideways, 30 Degree cast iron inclined bed to ensure quick chip evacuation.
• Our NT-208 series CNC Turning Center is based on a high quality cast iron bed for superior rigidity and anti-vibration characteristics.
• 30 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production
Management System) represent the first step in smart manufacturing.
STANDARD FEATURES:
3-jaw, 8” hydraulic chuck
Manual tailstock
Chain type chip conveyor with bucket
Coolant system
Oil skimmer
Tool box
Instruction manual, parts list, and electrical diagram
Fanuc operator and maintenance manuals
WARRANTY-Machine: One Year, Parts
WARRANTY-Control: Two Years, Parts & Labor
WORKING AREA:
Swing over bed 22.84” (580 MM)
Swing over cross slides 15.35” (390 MM)
Maximum turning diameter 16.54” (420 MM)
Maximum turning length 21.65” (550 MM)
TRAVEL:
X Axis Travel 8.27” + .79” (210 + 20 MM)
Z Axis Travel 22.44” (570 MM)
Rapid Traverse 787 / 945 IPM (20 / 24 m/min)
SPINDLE:
Spindle Motor 15 / 20 HP (11 / 15 KW)
Maximum Speed 4,200 RPM
Hydraulic Chuck 8”
Spindle Nose A2-6
Hole Through Draw Tube 2.598” (66 MM)
TURRET:
O.D. / I.D. Inch Turret 1.0” / 1.5”
Turret Type 12 – Servo driven
TAILSTOCK:
Quill Diameter 3.15” (80 MM)
Tailstock Travel 18.1” (460 MM)
Quill Travel 4.72” (120 MM)
Quill Taper MT - #4
GENERAL:
Floor Space Required (W X D) 151.14” X 76.77” (3,839 X 1,950 MM)
Height 70.28” (1,785 MM)
Machine Weight 9,150 LBS. (4,150 KG)
Standard Power Source 205-235 Volts / 3 Phase / 60HZ
Power Capacity Minimum 57 Amps (20 KVA)
