CAMPRO NT-208SY
Have one to sell?
ConditionNew
1 available
New

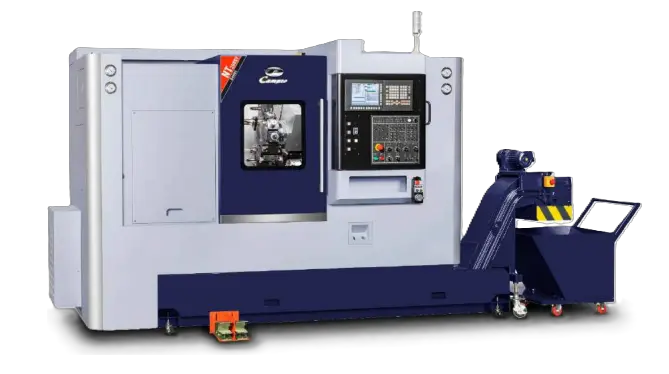

• The NT-208SY is Campro's highly flexible and profitable CNC Turning Center
• High-performance heavy-duty box guideways, 30 Degree cast iron inclined bed to ensure quick chip evacuation.
• Our NT-208SY CNC Turning Center is based on a high-quality cast-iron bed for superior rigidity and anti-vibration characteristics.
• 30 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production
Management System) represent the first step in smart manufacturing.
STANDARD FEATURES:
3-jaw, 8” hydraulic chuck
Chain type chip conveyor with bucket
Coolant system
Oil skimmer
Tool box
Instruction manual, parts list, and electrical diagram
Fanuc operator and maintenance manuals
WARRANTY-Machine: One Year, Parts
WARRANTY-Control: Two Years, Parts & Labor
WORKING AREA:
Swing over bed 26.7”
Swing over cross slides 18.1”
Maximum turning diameter 15.7”
Maximum turning length 20.4”
TRAVEL:
X Axis Travel 8.6”
Y Axis Travel 3.9”
Z Axis Travel 24.8”
Rapid Traverse 787 / 393 / 945 IPM
SPINDLE:
Spindle Motor 20 HP
Maximum Speed 4,200 RPM
Hydraulic Chuck 8”
Spindle Nose A2-6
Hole Through Draw Tube 2.05”
TURRET:
Tooling style BMT-55
Turret Type 12 – Servo driven
Tool Size OD / ID 1” / 1.5”
Maximum Live Tool Speed 5,000 RPM
One Axial and one Radial BMT live holder included
SUB SPINDLE:
Chuck Size 6”
Travel 19.6”
Maximum Speed 5,000 RPM
Spindle Nose A2-5
Hole Thru Draw Tube 1.7”
Spindle Motor 10 HP
GENERAL:
Floor Space Required (W X D) 167” X 84”
Height 93.7” W / Work Light
Machine Weight 10,360 LBS
Standard Power Source 205-235 Volts / 3 Phase / 60HZ
Power Capacity Minimum 30 KVA
