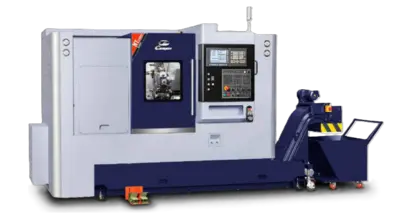

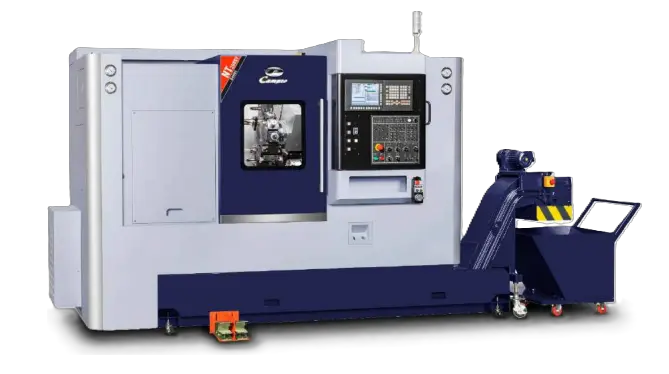

• The NT-208Y is Campro's highly flexible and profitable CNC Turning Center
• High performance heavy duty box guideways, 30 Degree cast iron inclined bed to ensure quick chip evacuation.
• Our NT-208Y series CNC Turning Center is based on a high quality cast iron bed for superior rigidity and anti-vibration characteristics.
• 30 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production
Management System) represent the first step in smart manufacturing.
STANDARD FEATURES:
3-jaw, 8” hydraulic chuck
Manual tailstock
Chain type chip conveyor with bucket
Coolant system
Oil skimmer
Tool box
Instruction manual, parts list, and electrical diagram
Fanuc operator and maintenance manuals
WARRANTY-Machine: One Year, Parts
WARRANTY-Control: Two Years, Parts & Labor
WORKING AREA:
Swing over bed 26.74”
Swing over cross slides 16.35”
Maximum turning diameter 15.74”
Maximum turning length 20.47”
TRAVEL:
X Axis Travel 8.66”
Y Axis Travel 3.93”
Z Axis Travel 24.8”
Rapid Traverse 787 / 393 / 945 IPM
SPINDLE:
Spindle Motor 15 / 20 HP
Maximum Speed 4,200 RPM
Hydraulic Chuck 8”
Spindle Nose A2-6
Hole Through Draw Tube 2.05”
TURRET:
Tooling style BMT-55
Turret Type 12 – Servo driven
One Axial and one Radial BMT live holder included
TAILSTOCK: 3.15”
Quill Diameter 1.81”
Tailstock Travel 4.72”
Quill Travel MT - #4
Quill Taper
GENERAL:
Floor Space Required (W X D) 151.14” X 76.77”
Height 70.28”
Machine Weight 9,150 LBS
Standard Power Source 205-235 Volts / 3 Phase / 60HZ
Power Capacity Minimum 57 Amps
