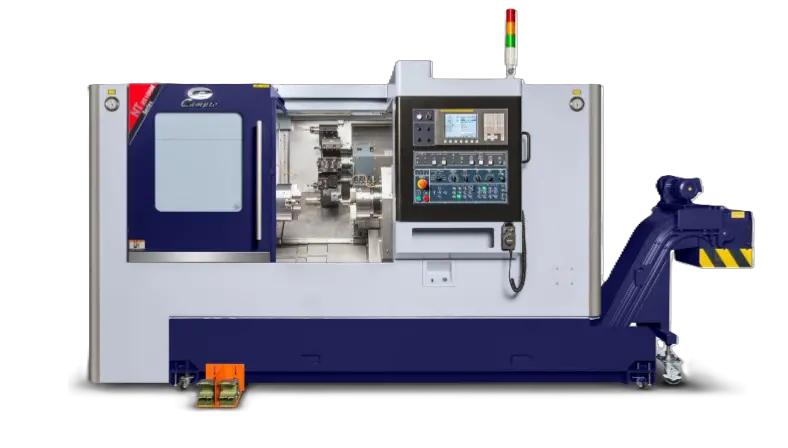

• The NT-2510SM is Campro's highly flexible and profitable twin spindle CNC lathe.
• Through the use of synchronized control, the 10” Main spindle / 8” Sub spindle can be utilized to complete the greatest amount of primary and secondary turning operations as possible, all in one compact platform.
• High performance heavy duty box guideways, 30 Degree cast iron inclined bed to ensure quick chip evacuation.
• Our NT-2510SM series CNC lathe is based on a high quality cast iron bed for superior strength and vibration characteristics.
• 30 cast iron inclined bed ensure quick chip evacuation. The new CPMS (Campro Production Management
System) represents the first step in smart manufacturing.
STANDARD FEATURES:
3-jaw power chuck
Hard jaws = one set; Soft jaws = three sets
Manual tailstock
Chain type chip conveyor with bucket
Coolant system
Oil skimmer
Tool box
Instruction manual, parts list, and electrical diagram
Fanuc operator and maintenance manuals
WARRANTY-Machine: One Year, Parts
WARRANTY-Control: Two Years, Parts & Labor
WORKING AREA:
Swing over bed 24.41” (620 MM)
Swing over cross slides 18.11” (460 MM)
Maximum turning diameter 16.54” (420 MM)
Maximum turning length 20.47” (520 MM)
TRAVEL:
X Axis Travel 8.27” + 1.18” (210 + 30 MM)
Z Axis Travel 20.87” (530 MM)
Rapid Traverse 945 ipm (24 / 24 m/min)
MAIN SPINDLE:
Hydraulic Chuck 10”
Maximum Speed 3,200 RPM
Hole Through Draw Tube 3.00” (75 MM)
Spindle Nose A2-8
Spindle Motor 20 / 25 HP (15 / 18.5 KW)
Indexing of C Axis .001 Degree
SUB SPINDLE:
Hydraulic Chuck 8”
Maximum Speed 4,200 RPM
Hole Through Draw Tube 2,047” (52 MM)
Spindle Nose A2-6
Spindle Motor 10 / 15 HP (7.5 / 11 KW)
Travel 18.90” (480 MM)
Rapid Traverse 590 IPM (15 M/MIN)
TURRET:
O.D. / I.D. .9842” / 1.5748” (25 / 40 MM)
Turret Type 12-Servo
Maximum Tool Speed 4,000 RPM
GENERAL:
Floor Space Required (W X D) 167.5” X 88.82” (4,254 X 2,256 MM)
Height 72.5” (1,842 MM)
Machine Weight 10,472 LBS. (4,750 KG)
Standard Power Source 205-235 Volts / 3 Phase/60HZ
Power Capacity 71 Amps (25 KVA)
