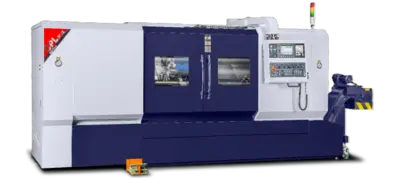

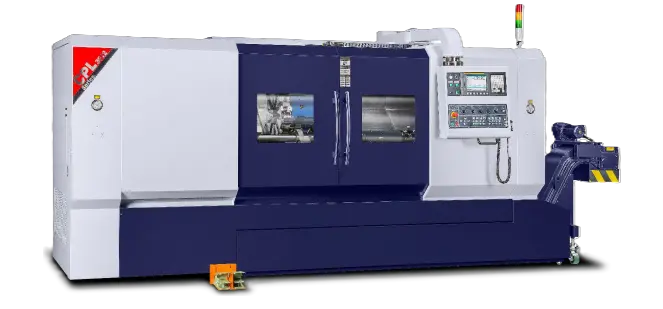

CAMPRO CPL-3512
Have one to sell?
ConditionNew
1 available
New
• The CPL series is Campro's highly flexible and profitable CNC Turning Center
• High performance linear motion guideways, One Piece, 45 Degree cast iron inclined bed to ensure quick chip evacuation.
• Our CPL series CNC Turning Center is based on a high quality one piece cast iron bed for superior
rigidity and anti-vibration characteristics.
• 45 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production
Management System) represent the first step in smart manufacturing.
STANDARD FEATURES:
3-jaw, 12” hydraulic chuck
Manual tailstock
Chain type chip conveyor with bucket
Coolant system
Oil skimmer
Tool box
Instruction manual, parts list, and electrical diagram
Fanuc operator and maintenance manuals
WARRANTY-Machine: One Year, Parts
WARRANTY-Control: Two Years, Parts & Labor
WORKING AREA:
Swing over bed 27.5”
Swing over cross slide 19.6”
Maximum turning diameter 19.6”
Maximum turning length 39.4”
TRAVEL:
X Axis Travel 9.8” + .9”
Z Axis Travel 39.4”
Rapid Traverse 945 IPM
SPINDLE:
Spindle Motor 30 / 35 HP
Maximum Speed 2,000 RPM
Hydraulic Chuck 12”
Spindle Nose A2-11
Hole Through Draw Tube 4.6”
TURRET:
O.D. / I.D. 1.0” / 1.57”
Turret Type 10 Station
TAILSTOCK:
Quill Diameter 4.3”
Quill Travel 7.8”
Quill Taper MT - #5
GENERAL:
Floor Space Required (W X D) 179” X 83”
Machine Weight 14,330 LBS
Standard Power Source 205-235 Volts / 3 Phase / 60HZ
Power Capacity Minimum 74 Amps (30 KVA)
