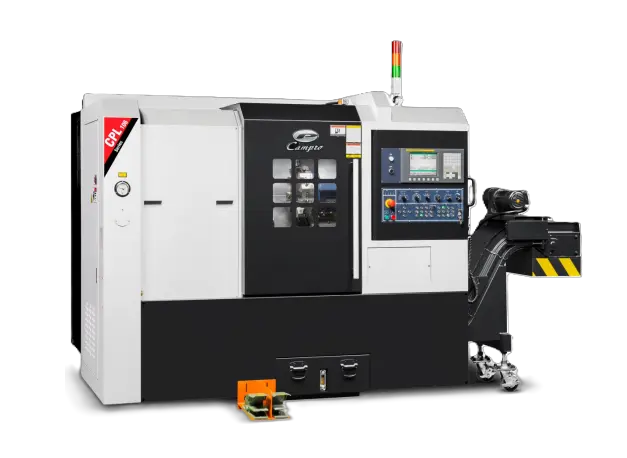

CAMPRO CPL-106
Have one to sell?
ConditionNew
1 available
New
• The CPL-106 is Campro's highly flexible and profitable CNC Turning Center
• High performance linear motion guideways, One Piece, 45 Degree cast iron inclined bed to
ensure quick chip evacuation.
• Our CPL series CNC Turning Center is based on a high quality one piece cast iron bed for superior
rigidity and anti-vibration characteristics.
• 45 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production
Management System) represent the first step in smart manufacturing.
STANDARD FEATURES:
3-jaw, 6” hydraulic chuck
Manual tailstock
Chain type chip conveyor with bucket
Coolant system
Oil skimmer
Tool box
Instruction manual, parts list, and electrical diagram
Fanuc operator and maintenance manuals
WARRANTY-Machine: One Year, Parts
WARRANTY-Control: Two Years, Parts & Labor
WORKING AREA:
Swing over bed 17.7”
Swing over cross slides 10”
Maximum turning diameter 11.4”
Maximum turning length 13.7”
TRAVEL:
X Axis Travel 5.9” + .78”
Z Axis Travel 13.8”
Rapid Traverse 945 IPM
SPINDLE:
Spindle Motor 10 / 15 HP
Maximum Speed 6,000 RPM
Hydraulic Chuck 6”
Spindle Nose A2-5
Hole Through Draw Tube 1.8”
TURRET:
O.D. / I.D. .787” / 1.26”
Turret Type 10 - Hydraulic
TAILSTOCK:
Quill Diameter 2.75”
Quill Travel 3.14”
Quill Taper MT - #4
GENERAL:
Floor Space Required (W X D) 117” X 63”
Machine Weight 6,614 LBS
Standard Power Source 205-235 Volts / 3 Phase / 60HZ
Power Capacity Minimum 36 Amps (20 KVA)
