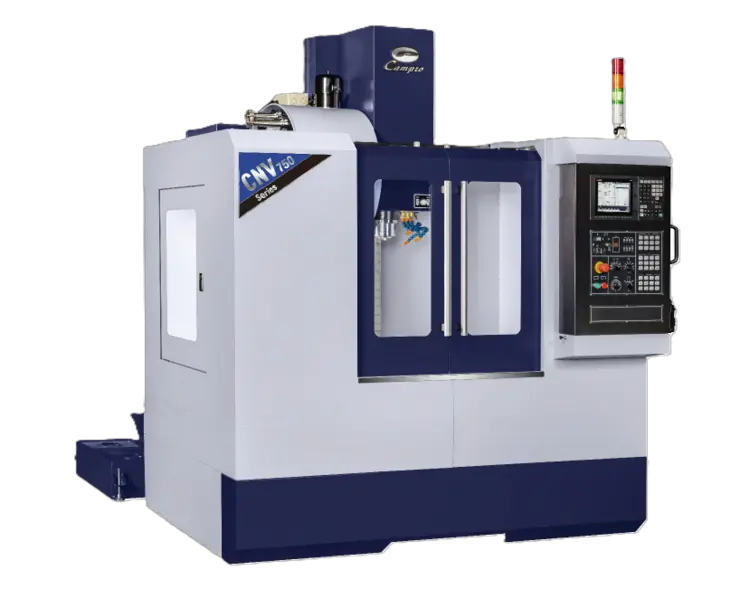

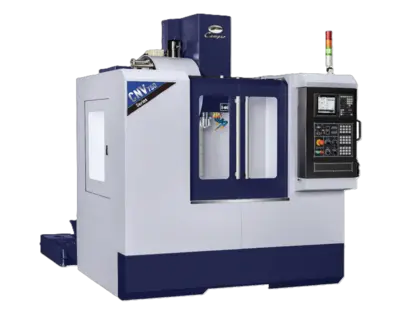

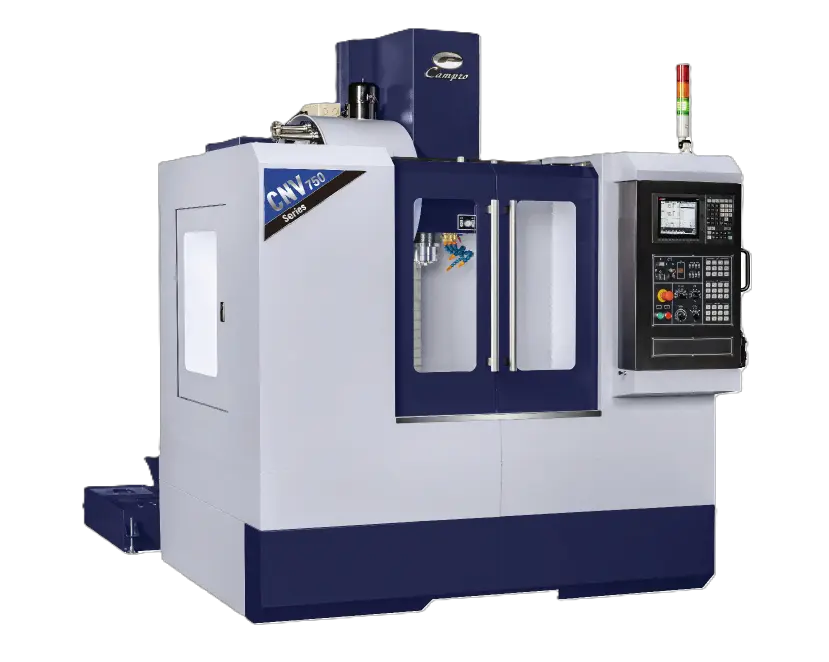

CAMPRO CNV-750

CAPACITY:
X Axis Travel 29.5.”
Y Axis Travel 16.9”
Z Axis Travel 18.9”
Distance from Spindle Nose to Table 3.93” – 22.83”
Distance from Spindle Center to Column 19.09”

TABLE:
Table Loading Area 33.46” X 16.92”
Max Table Load 660 lbs.
T-Slots, width x spacing x # slots .551” X 3.937” X 4”

SPINDLE:
Spindle Speed 12,000 RPM
Spindle Motor 20 HP
Spindle Taper Type CAT 40 Big Plus
Spindle Driving Method Belt Drive

AUTO TOOL CHANGER:
ATC Type Twin Arm Type
Tool Shank CAT 40
Pull Stud P – 40T (45 Deg.)
Tool Storage Capacity 20
Max. Tool Dia. 3.15”
Max Tool Dia. (Adjacent Pot Empty) 5.1”
Max Tool Length 9.8”
Max Tool Weight 15 lbs.
Tool Change Time TOOL – TOOL 2.5 sec.
Tool Change Time CHIP – CHIP 7 sec.
Tool Selection Random Bi-Directional Type

FEED:
Rapid Traverse Feed rate 1,181 IPM All Axes
Cutting feed rate 393 IPM
Least Command Increment .001 mm,
Positioning Accuracy .00020”
Repeatability .00008”
Slide Type LM Guideways

POWER:
Air Source Requirement 85 – 115 PSI (3/8 ID Supply Hose)
Standard Power Source 220V, 60HZ, 3 Phase +/- 10%
Power Capacity 40 Amps Minimum

GENERAL:

Floor Plan (W X D) 89” X 106” in.
Height 99.2” in.
Geometric accuracies are guaranteed only if machine is installed on foundation meeting the
minimum requirements of the machine and local building codes.

CONSTRUCTION:

BED, COLUMN, AND SADDLE
The bed is a rigid one-piece casting with heavy ribbing to prevent deformation during heavy cutting.
Fine grain Meehanite cast iron is used for its excellent dampening characteristics. The table is
fully supported by the saddle in all positions. There is no table overhang. The rigid box type column
casting is heavily ribbed to prevent twisting or distortion.

SPINDLE, HEADSTOCK, AND COLUMN
The high speed 12,000 RPM, 40 taper spindle is a true cartridge type unit supported by precision class
bearings that are permanently grease lubricated. The spindle is driven by a high torque 20 HP A.C.
motor. Power is transferred through a heavy-duty cogged drive belt eliminating slippage, promoting
thermal stability, and minimizing vibration.

BALANCED 12,000 RPM SPINDLE with spindle oil cooler 6000 BTU for High-Speed Machining

HARDENED AND GROUND C3 DOUBLE NUT BALL SCREWS are Pretensioned to minimize backlash, provide high precision
movement, and reduce heat deformation on all axes.

OIL JACKET SPINDLE CHILLER
Machine accuracy is maintained by using a refrigeration system that circulates cooled oil around the spindle
reducing the thermal effects of any heat generated.

AUTOMATIC TOOL CHANGER
The high quality 20-position tool changer uses a fast, random bi-directional twin arm with 2.5 second tool-to-
tool change time, and 7 seconds chip to chip.

BALLSCREWS AND AXIS DRIVES
Each axis is driven by a high precision double-nut ball screw. The ball screws are centered between the
guideways. The ball screws are supported on both ends by angular contact thrust bearings. This double
anchored pretension design provides outstanding positioning repeatability with virtually no thermal growth.
All axes have large diameter ball screws that are connected directly to oversize AC servo drive motors
without gears or belts, to eliminate backlash. Each axis has a flexible coupling to protect the ball screw in
the event of a sudden impact. These couplings can be quickly reset.

CAMPRO CNV-750
CONSTRUCTION (Continued):

PORTABLE MANUAL PULSE GENERATOR
The hand held “Manual Pulse Generator” lets each axis move in increments of 0.0001”, 0.0010” or 0.0100”
making fixture or part alignment quick and easy. The 10-foot cord gives full access to the machine.

PROGRAM AND DATA PROTECTION KEY SWITCH
The keyed switch enables the protection mode for both the program and offset data. Removing the key
limits access to only authorized personnel. In the unprotected position the key cannot be removed and all
data is available for edit.

FULLY ENCLOSED GUARDING
The fully enclosed guarding is made of heavy gauge sheet metal to contain both chips and coolant. The
large dual sliding doors open to provide unrestricted overhead access for ease of lifting heavy fixtures or
work pieces.

CHIP DISPOSAL AND COOLANT SYSTEM
High volume coolant system washes chips down into the front of sheet metal enclosure for chip auger
evacuation and provides flood coolant through adjustable head mounted nozzles along with four flushing
nozzles mounted directly to spindle nose.
