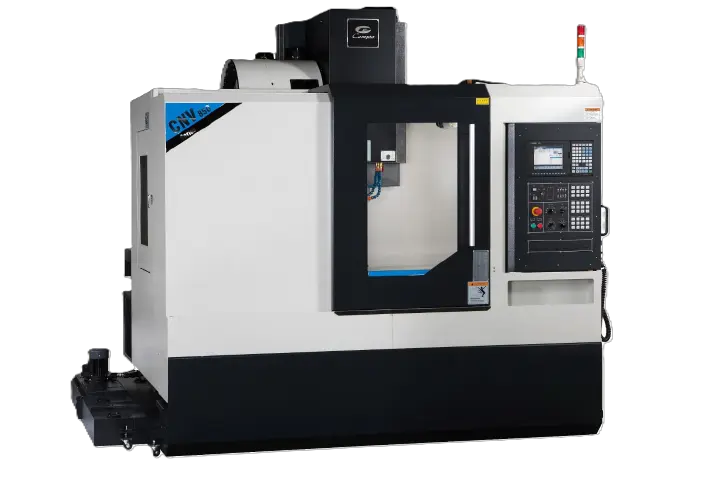

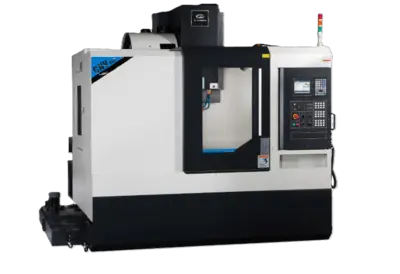

CAMPRO CNV-850
Have one to sell?
ConditionNew
1 available
New
The CNV-850 is designed for long-term high accuracy, and superior surface finishes. Classic
manufacturing methods and ultra-rigid construction are combined with advanced technological features
to provide exceptional value.
Please note that features and specifications are subject to change and should be verified at the
time of order.
STANDARD FEATURES:
* FANUC 0i-MF PLUS Control Type 1
* Twin Arm 20 Tool Capacity ATC
* 12,000 RPM Spindle
* CAT40 Big Plus Spindle
* Spindle Oil Cooler
* Powerful 20 hp Spindle Motor
* Additional M-Codes
* Flood Coolant
* Spindle Coolant
* Coolant Through Spindle Prep
* Air Blow
* Rigid Tapping
* Custom Macro B
* Portable Manual Pulse Generator
* Massive One-Piece Meehanite Cast Bed
* 4th Axis Prep
* Double Anchored, Pre-tensioned Ball Screws
* Fast 1,181 IPM Rapid Traverse rate
* Full Enclosure Splash Guard
* Work Light
* Operator Call Lamp (red, yellow, green)
* Assembly and Operation Tools
* Auto Power Off
* Heat Exchanger for Electrical Cabinet
* Machine Tool Manuals
* Fanuc Manuals
* WARRANTY-MACHINE: One-Year Parts Only
* WARRANTY-CONTROL: Two-Years Parts and Labor
CAPACITY:
X Axis Travel 33.4.”
Y Axis Travel 20.4”
Z Axis Travel 20.4”
Distance from Spindle Nose to Table 4.3” – 24.8”
Distance from Spindle Center to Column 24.8”
TABLE:
Table Loading Area 37.4” x 20.4””
Max Table Load 1,100 lbs.
T-Slots, width x spacing x # slots .7” X 5 X 3.9”
SPINDLE:
Spindle Speed 12,000 RPM
Spindle Motor 20 HP
Spindle Taper Type CAT 40 Big Plus
Spindle Driving Method Belt Drive
AUTO TOOL CHANGER:
ATC Type Twin Arm Type
Tool Shank CAT 40
Pull Stud P – 40T (45 Deg.)
Tool Storage Capacity 20
Max. Tool Dia. 3.1”
Max Tool Dia. (Adjacent Pot Empty) 5.9”
Max Tool Length 9.8”
Max Tool Weight 15 lbs.
Tool Change Time TOOL – TOOL 2.5 sec.
Tool Change Time CHIP – CHIP 7 sec.
Tool Selection Random Bi-Directional Type
FEED:
Rapid Traverse Feed rate 1,181 IPM All Axes
Cutting feed rate 393 IPM
Least Command Increment .001 mm,
Positioning Accuracy .00020”
Repeatability .00008”
Slide Type LM Guideways
POWER:
Air Source Requirement 85 – 115 PSI (3/8 ID Supply Hose)
Standard Power Source 220V, 60HZ, 3 Phase +/- 10%
Power Capacity 40 Amps Minimum
GENERAL:
Floor Plan (W X D) 88” X 115”
Height 105 in.
