Blum-Novotest LC50-DIGILOG
Have one to sell?
ConditionNew
1 available
New

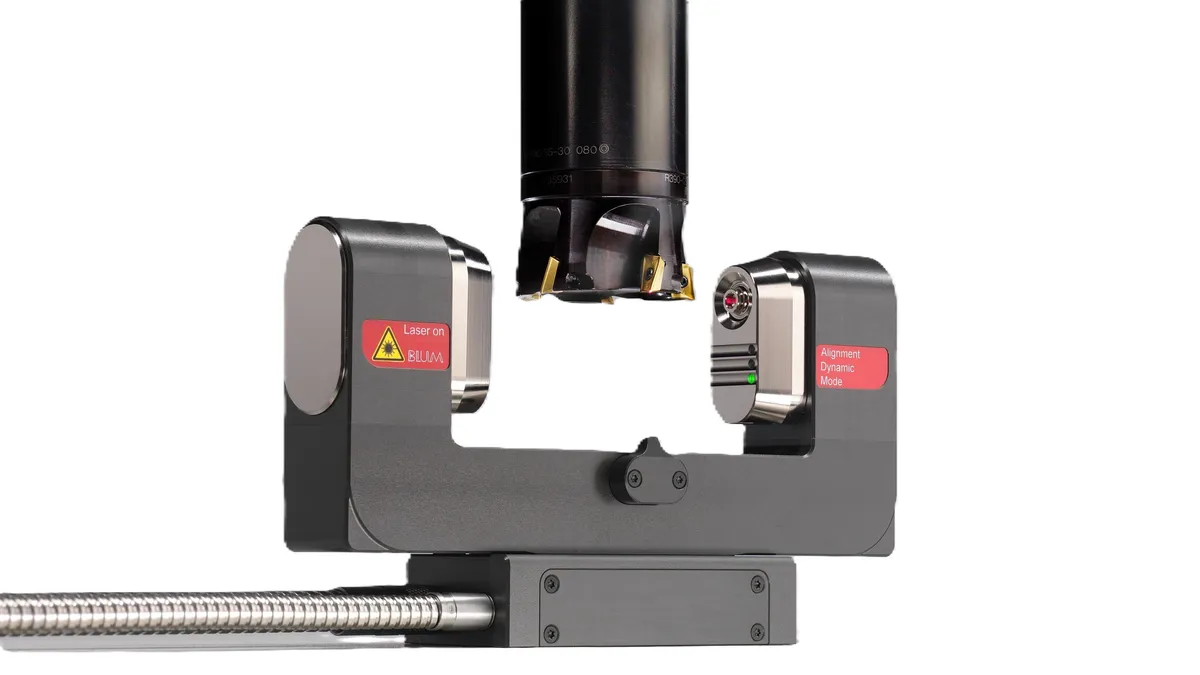

Laser measuring system for CNC machine tools that is unique worldwide for non-contact tool measurement and tool monitoring under the harshest conditions. Unbeatably fast, precise and reliable thanks to the latest DIGILOG technology, premium laser optics and perfected BLUM protection system.
System Length Options ........... mm .......... 150, 200, 260, 300, 400, 500
Maximum Tool Diameter .......... mm .......... 36, 120, 314, 498, 1154, 2087
Minimum Tool Diameter .......... µm .......... 15, 20, 30, 37, 49, 66
Repeatability (2σ)
– 150 mm System ............... µm .......... 0.2
– 200 mm System ............... µm .......... 0.3
– 260 mm System ............... µm .......... 0.4
– 300 mm System ............... µm .......... 0.5
– 400 mm System ............... µm .......... 0.7
– 500 mm System ............... µm .......... 0.9
