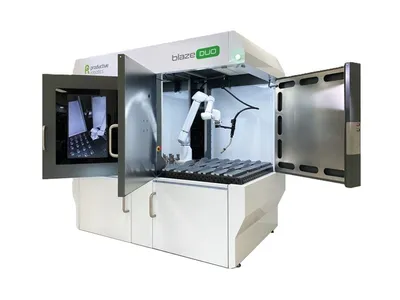

Productive Robotics Blaze DUO

Weld Table + System Dimensions
– Overall Footprint ............ in ............ 101" (W) x 61" (D) x 100" (H)
– Table Height .................. in ............ 36"
– Two Weld Stations ............. in ............ 41.75" x 48" Each
– Spatter Catch Trays ........... – ............. 2 Full-Coverage Trays

Maneuverability .................. – ............. Unmatched 7-Axis Flexibility
Torch Reach ..................... in ............ 61 (Including MIG Torch)
Weld Speed ...................... in/min ........ 100 (Up to 2,540 mm/min)
Weld Recipes .................... – ............. Unlimited
Welding Modes ................... – ............. Continuous, Tack, Stitch, Weave
Robot Weight .................... lb ............ 58
Repeatability ................... in ............ ±0.004" (±0.1 mm)
Max Speed ....................... in/sec ........ 78
IP Rating ....................... – ............. IP61
Joint Range ..................... deg ........... ±360° (All Joints)
Mounting Flange Diameter ........ in ............ 8.66" (220 mm)
Operating Temperature ........... °F ............. 32° – 100°F (0° – 37°C)
Power Requirement ............... – ............. 120/240V, 60Hz, 500W (Excludes Welder Power)
Power Consumption ............... W ............. 90 – 650
