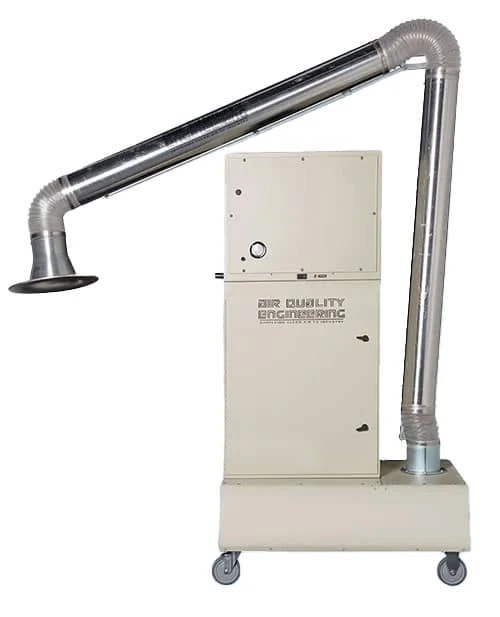

M68V

Motor Type ............................... Heavy-duty 1 1/2 HP motor with sealed ball bearings
Power Input ............... V/Hz/Ph ...... 110–120 / 60 / 1 – 18.2 A
.................................................. 208–240 / 60 / 1 – 9.1 A
Air Flow .................... CFM .......... One Arm: Up to 1100 / arm
.................................................. Two Arm: Up to 1000 / arm
.................................................. (Belt drive fan capable of 4400 CFM free air, with field adjustable motor sheave)
Filtration Efficiency ...... % ............. HEPA 99.97% @ .3 microns (Rated 1100 CFM); Prefilter: 35% Efficient
Primary Filter .............. – ............. 24" × 24" × 12" HEPA, rated 1100 CFM
Prefilter ..................... – ............. 24" × 24" × 4" pleated media, 35% efficient
Diagnostics ................. – ............. Minihelic Filter Gauge (Factory Installed)
Blower ....................... – ............. Belt Drive Fan, 4400 CFM Free Air, Field Adjustable Motor Sheave
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Ivory Enamel Finish
Sound Level .................. dB(A) ........ Max 72 @ 15 ft / 74 @ 9 ft
Dimensions (H×W×L) ....... in ............ 65 × 31.13 × 41.25
Weight ...................... lb ............. 422 (Installed) / 485 (Shipping)
Finish ....................... – ............. Ivory Enamel

Standard Features
– True HEPA filter rated 99.97% efficiency @ .3 microns rated for 1100 CFM
– One externally supported 6″ or 8″ diameter by 13′ arm with hood
– 1 1/2 HP motor
– 35% efficiency pleated prefilter
– Minihelic filter gauge
– 3-year limited warranty

Optional Features
– Motor and fan upgrades including backward inclined fans
– 2000 CFM capacity HEPA
– 65% eff. high capacity pleated prefilter
– Second collection arm
– Additional filter modules
– Hood light and controls
