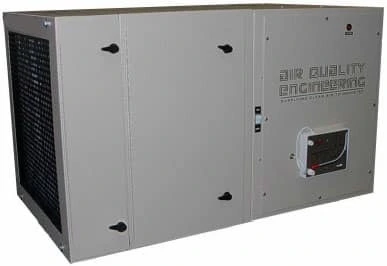

M68

Motor Type ............................... 1 1/2 HP, Heavy-Duty, Sealed Ball Bearings
Power Input ............... V/Hz/Ph ...... 110–120 / 60 / 1 – 17.2 A
.................................................. 208–240 / 60 / 1 – 0.8 A
Air Flow .................... CFM .......... 3000 (Belt driven fan, free air, field adjustable motor sheave)
Filtration Efficiency ...... % ............. HEPA 99.97% efficiency @ .3 microns (Primary Filter)
Primary Filter .............. – ............. 24" × 24" × 12" HEPA certified
Prefilter ..................... – ............. 24" × 24" × 4" Pleated Media, 35% efficient
Filter Access ............... – ............. Side Load Mechanical Filter System
Diagnostics ................. – ............. Dirty Filter Gauge (Factory Installed)
Blower ....................... – ............. Belt Driven Fan, Field Adjustable Motor Sheave
Cabinet Material ........... – ............. 16 Gauge Welded Steel Cabinet with Ivory Enamel Finish
Mounting Options ........... – ............. Ceiling Mount (3/8 – 16 NC Eyebolts Included) or Wall (Optional Hardware)
Power Cord ................. – ............. 10 ft with Molded Plug
Sound Level .................. dB(A) ........ Max 72 @ 15 ft / 74 @ 9 ft
Dimensions (H×W×L) ....... in ............ 27.10 × 26.5 × 46 (or 48 for Direct Drive Option)
Weight ...................... lb ............. 296 (Installed) / 345 (Shipping)

Standard Features
– True HEPA filter rated 99.97% efficiency @ .3 microns
– Side load mechanical filter system for easy filter access
– 4-way adjustable louvers
– 10-foot power cord with molded plug on single phase units
– Quality engineering and workmanship backed by a 3-year parts warranty

Optional Features
– Motor and fan upgrades
– Add on carbon or electrostatic modules
– Collection arms
