M66V
Have one to sell?
ConditionNew
1 available
New

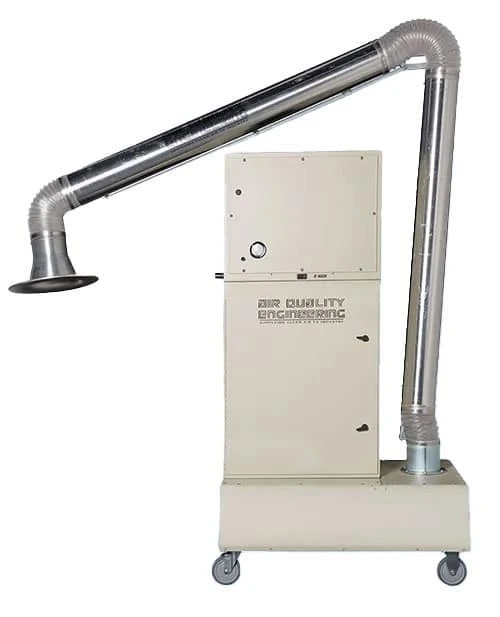

The M66V is a Mobile self-contained media air cleaning system designed for general background or ducted for source capture applications. The M66V can be ordered with three-stage filtration which will effectively remove a broad range of airborne contaminants including fine dusts, smoke, soot, vapors, mist, VOC’s and more at a rate of up to 2000 CFM
Motor Type ............................... 1 HP, Sealed Ball Bearing (Thermally Protected)
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 13.6 A
.................................................. 208–240 / 60 / 1 – 6.6 to 6.8 A
.................................................. 208–240 / 60 / 3 – 8.6 to 9.2 A
.................................................. 440–480 / 60 / 3 – 4.3 A
Air Flow .................... CFM .......... Up to 4,400 (Free Air)
Filtration Efficiency ...... % ............. 35%–95% (ASHRAE 52.2)
Primary Filter .............. – ............. 24" x 24" x 22" 8-Pocket Bag Filter (66 ft²)
Optional Filter ............. – ............. Up to 200 ft² Extended Surface Filters
Prefilter ..................... – ............. 4" Pleated, 30–35% Efficiency, 29.5 ft² Media
Filter Access ............... – ............. Hinged Side Door with Track System
Diagnostics ................. – ............. Minihelic Gauge + Blower Indicator Light
Blower ....................... – ............. Forward Curved, Belt Driven, 4,400 CFM Free Air
Cabinet Material ........... – ............. 16-Gauge Galvanized Steel, Textured Baked Enamel
Mounting Options ........... – ............. Mobile – Four Heavy-Duty Swivel Casters
Arm Assembly ................ – ............. 13' Externally Supported Arm, 6" or 8" Dia., 180° Swing
Power Cord ................. – ............. 10 ft with Molded Plug (Single Phase Only)
Sound Level .................. dB(A) ........ 67 @ 9 ft / 66 @ 15 ft
Dimensions (L×W×H) ....... in ............ 41.25 x 31.13 x 73
Weight ...................... lb ............. 368 (Installed) / 440 (Shipping)
Finish ....................... – ............. Powder-Coated, Baked Enamel
Standard Features
– 13' Externally Supported Arm (6" or 8")
– MERV 13–14 Bag Filters (66 ft² Standard, 200 ft² Optional)
– 4" Pleated Prefilter
– Minihelic Pressure Gauge + Indicator Light
– 1 HP Maintenance-Free Motor
– 3-Year Parts Warranty
Optional Features
– Halogen Light & Hood Controls
– Up to 90 lb Activated Carbon Module
– Double Arm Configuration
– 1.5, 2, or 3 HP Motor Upgrades
– Backward Inclined Blower Upgrade
– Extended Service Filter
– HEPA Filter Upgrade
– Adsorptive Media Filter Options
