M66
Have one to sell?
ConditionNew
1 available
New

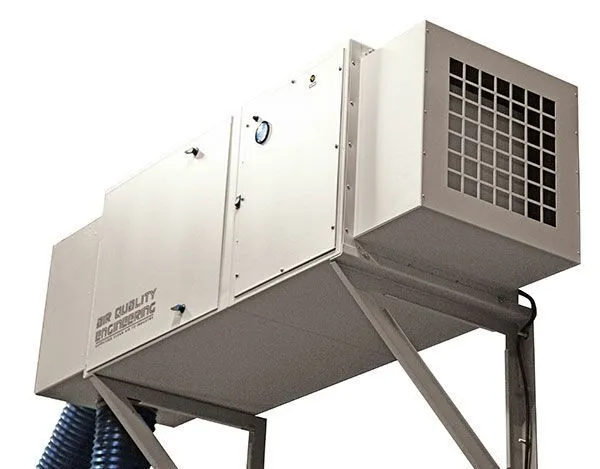

The M66 is a self-contained media air cleaning system designed for general background or ducted for source capture applications. The M66 can be ordered with three-stage filtration which will effectively remove a broad range of airborne contaminants including fine dusts, smoke, soot, vapors, mist, VOC’s and more at a rate of up to 3200 cfm.
Motor Type ............................... 1 HP (Single Phase), 3 HP (Three Phase), Maintenance-Free
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 12 A
.................................................. 208–240 / 60 / 1 – 6.6 to 9 A
.................................................. 208–240 / 60 / 3 – 9 A
.................................................. 440–480 / 60 / 3 – 4.4 A
Air Flow .................... CFM .......... 1,940 – 3,225 (Based on Filter & Motor Selection)
Filtration Efficiency ...... % ............. 35% to 95% (ASHRAE Dust Spot)
Primary Filter .............. – ............. 24" x 24" x 22", 8-Pocket Bag Filter (66 ft² Media)
Optional Filter ............. – ............. Up to 200 ft² Extended Surface Filters
Prefilter ..................... – ............. 4" Pleated MERV 8 (30–35% Efficiency), 29.5 ft² Media
Filter Access ............... – ............. Hinged Side Door with Track System
Diagnostics ................. – ............. Dirty Filter Gauge + Indicator Light
Blower ....................... – ............. Forward Curved, Belt Driven (4,400 CFM Free Air)
Blower Option .............. – ............. Direct Drive, Backward Inclined (Optional)
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Textured Enamel Finish
Mounting Options ........... – ............. Standing or Hanging (Ceiling Mount Brackets Included)
Ambient Temp. .............. °F ............. Max 175°
Power Cord ................. – ............. 10 ft with Molded Plug (Single Phase Only)
Sound Level .................. dB(A) ........ 73 @ 9 ft / 70 @ 15 ft
Dimensions (H×W×L) ....... in ............ 27.13 x 26.5 x 56
Weight ...................... lb ............. 250 (Installed) / 297 (Shipping)
Finish ....................... – ............. Baked Enamel, Powder-Coated Steel
Standard Features
– 1 HP or 3 HP Motor Options
– Multi-Media Filter Track Compatibility
– Dirty Filter Gauge & Power Light
– Fully Prewired (Incl. 3 Phase)
– 3-Year Parts Warranty
Optional Features
– 2, 3, or 5 HP BI Blower Packages
– Extended Service Filters
– HEPA or Electrostatic Modules
– Wraparound Prefilter
– Minihelic® Gauge
– Source Capture Plenums (CA Install Required)
– 45 or 90 lb Activated Carbon Modules
– Impinger Assembly
– Oil Mist Bag Filter
– Silencer
