M73
Have one to sell?
ConditionNew
1 available
New

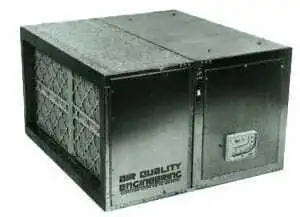

The M73 air cleaner is a media filtration unit featuring an ESF gradient density non-shedding polypropylene filter for long filter life and high efficiency to effectively remove smoke, mist, and dust particulate. It is designed for source capture and ambient air cleaning applications within environments such as grinding, welding, foam cutting, rubber extruding, injection molding and dust associated with warehousing facilities.
Motor Type ............................... 5 HP, Direct Drive
Power Input ............... V/Hz/Ph ...... 208–240 / 60 / 3
.................................................. 440–480 / 60 / 3
.................................................. International Voltages Available
Air Flow .................... CFM .......... Up to 5,500
Cabinet Material ........... – ............. 16-Gauge Powder-Coated Steel
Filtration Efficiency ...... % ............. Based on Filter Media (MERV or ESF)
Prefilter Options ............ – .............
– Two 24" x 24" x 4" Pleated Filters
– Four 24" x 24" x 2" Mist Impingers
Primary Filter Options ...... – .............
– Two 24" x 24" x 12" Polypropylene ESF
Filter Access ............... – ............. Standard Track System for Filter Swaps
Diagnostics ................. – ............. Dirty Filter Gauge
Blower ....................... – ............. Direct Drive, Backward Inclined
Controls ..................... – ............. Motor Starter & Control Circuitry
Mounting Options ........... – ............. Floor or Wall Mount (Optional Arms)
Power Cord ................. – ............. Field Wired (3 Phase Configuration)
Weight ...................... lb ............. 405 (Installed) / 465 (Shipping)
Finish ....................... – ............. Durable Industrial Powder-Coated Steel
Standard Features
– 5 HP Direct Drive Motor
– Backward Inclined Blower for High Static Applications
– Dirty Filter Gauge
– Motor Starter & Control Circuitry
– Multi-Stage Filtration Compatibility
Optional Features
– Custom Source Capture Plenum
– Additional Prefilter Stages
– Odor Control Module
– Electrostatic Filter Module
– Wall Mount Arms
