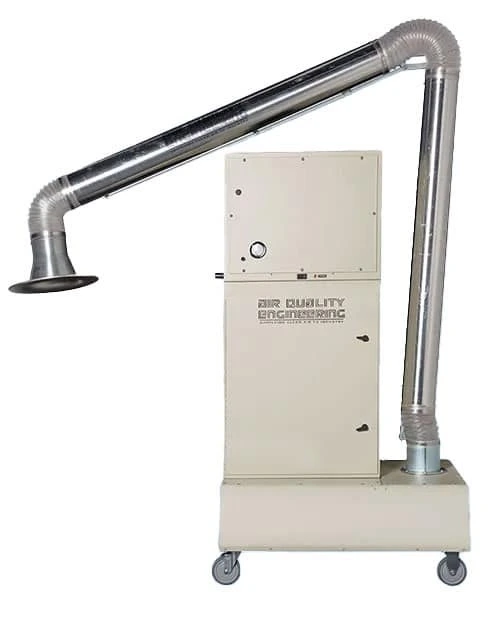

M33V

Motor Type ............................... 1 HP, Sealed Ball Bearing (Thermally Protected)
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 13.6 A
Air Flow .................... CFM .......... Up to 2,250 (Factory Set to 500 CFM w/ Carbon Option)
Filtration Efficiency ...... % ............. MERV 13–14 (ASHRAE 52.2)
Primary Filter .............. – ............. 12" x 24" x 26" Bag Filter (42 ft²)
Optional Filter ............. – ............. 100 ft² Extended Surface Filter
Prefilter ..................... – ............. 4" Pleated, 30–35% Efficiency, 15 ft² Media
Filter Access ............... – ............. Hinged Side Door with Track System
Diagnostics ................. – ............. Minihelic Gauge + Blower Indicator Light
Blower ....................... – ............. Forward Curved, Belt Driven, 2,250 CFM Free Air
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Textured Enamel Finish
Mounting Options ........... – ............. Mobile – 4 Heavy-Duty Swivel Locking Casters
Arm Assembly ................ – ............. 13' Externally Supported Arm, 6" or 8" Dia., 180° Swing
Carbon Filter Option ......... – ............. 22 lb Refillable Module (PN 07125), Max Airflow: 500 CFM
Power Cord ................. – ............. 10 ft with Standard Molded Plug
Sound Level .................. dB(A) ........ 67 @ 9 ft / 66 @ 15 ft
Dimensions (H×W×L) ....... in ............ 73 x 31.13 x 41.25
Weight ...................... lb ............. 274.5 (Installed) / 324 (Shipping)
.................................................. +44 lb with Carbon Module

Standard Features
– 13' Externally Supported Arm (6" or 8")
– MERV 13–14 Bag Filter (42 ft²)
– 4" Pleated Prefilter
– Dirty Filter Gauge & System Indicator
– 1 HP Maintenance-Free Motor
– 3-Year Parts Warranty

Optional Features
– Halogen Light & Hood Controls
– 22 lb Refillable Carbon Module (Airflow Set to 500 CFM)
– 1.5 HP and 2 HP Motor Upgrades
– 65% Pleated Prefilter
– Extended Service Filter Option
