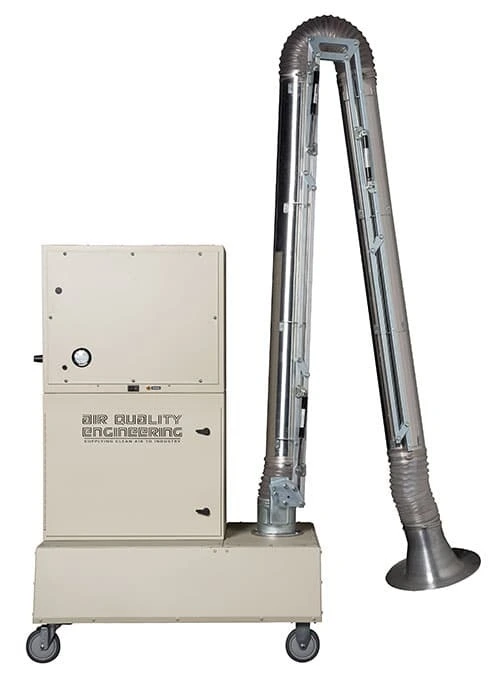

M32V

Motor Type ............................... 1 HP, Sealed Ball Bearing (Thermally Protected)
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 13.6 A
Air Flow .................... CFM .......... Up to 2,250 (Free Air)
Filtration Efficiency ...... % ............. MERV 13–14 (ASHRAE 52.2)
Primary Filter .............. – ............. 12" x 24" x 12" Synthetic ESF (100 ft² Area)
Prefilter ..................... – ............. 4" Pleated, 30–35% Efficiency, 15 ft² Media
Filter Access ............... – ............. Hinged Side Door with Track System
Diagnostics ................. – ............. MiniHelic Gauge + Blower Indicator Light
Blower ....................... – ............. Forward Curved, Belt Driven, 2,250 CFM Free Air
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Textured Enamel Finish
Mounting Options ........... – ............. Mobile – 2 Swivel Locking + 2 Fixed Casters
Arm Assembly ................ – ............. 13' Externally Supported, Swings 180°, 6" or 8" Dia.
Power Cord ................. – ............. 10 ft with Standard Molded Plug
Sound Level .................. dB(A) ........ 67 @ 9 ft / 66 @ 15 ft
Dimensions (H×W×L) ....... in ............ 61 x 31.13 x 41.25
Weight ...................... lb ............. 274.5 (Installed) / 324 (Shipping)
Finish ....................... – ............. Baked Enamel, Powder-Coated Steel

Standard Features
– 13' Externally Supported Arm
– Synthetic Media ESF Filter (Up to 100 ft²)
– 4" Pleated Prefilter
– MiniHelic Pressure Gauge
– Blower Motor Indicator Light
– 1 HP Maintenance-Free Motor
– 3-Year Parts Warranty

Optional Features
– LED Light + Hood Controls
– 1.5 HP and 2 HP Motor Upgrades
– 65% Efficient Pleated Prefilter
– 8" Diameter Arm Option
