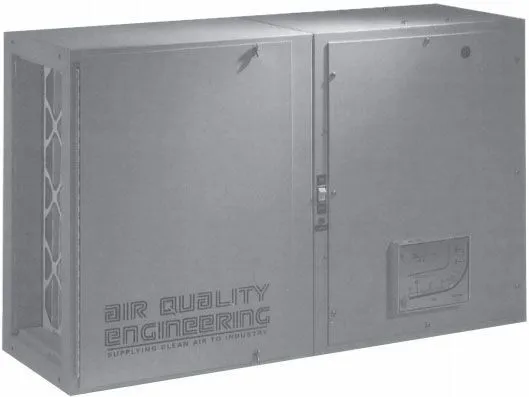

M32

Motor Type ............................... 1 HP, Sealed Ball Bearing (Thermally Protected)
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 12 A
Alternate Power ............ V/Hz/Ph ...... 208–240 / 60 / 1 – 6 A
Air Flow .................... CFM .......... Up to 1300 (based on filter choice)
Filtration Efficiency ...... % ............. 65–98% (ASHRAE 52.1-1992)
Primary Filter .............. – ............. Rigid V-Bank Microglass Fiber, 100 ft²
Prefilter ..................... – ............. 4" Pleated, 30–35% Efficiency, 15 ft² Media
Filter Access ............... – ............. Hinged Side Door with Track System
Power Supply ............... – ............. Self-Regulating
Diagnostics ................. – ............. Dirty Filter Gauge + Indicator Light
Blower ....................... – ............. Forward Curved, Belt Driven, 2,250 CFM Free Air
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Textured Enamel Finish
Mounting Options ........... – ............. Standing, Hanging, or Ceiling Mount (Brackets Standard)
Power Cord ................. – ............. 10 ft with Molded Plug (Single Phase)
Sound Level .................. dB(A) ........ 72 @ 9 ft / 70 @ 12 ft
Ambient Temp. .............. °F ............. Max 175°
Dimensions (H×W×L) ....... in ............ 27.5 x 14.5 x 44
Weight ...................... lb ............. 185 (Installed) / 220 (Shipping)
Finish ....................... – ............. Baked Enamel, Powder-Coated Steel

Standard Features
– Rigid V-Bank Extended Service Filter (100 ft²)
– 4" Pleated Prefilter
– 1 HP Maintenance-Free Motor
– Dirty Filter Gauge & System Indicator
– Ceiling Mount Brackets
– 3-Year Parts Warranty

Optional Features
– 2 HP Motor Upgrade
– Impinger Assembly for Mist
– Plenum, Ducting, Hood Accessories
– 65%, 85%, or 95% DOP Primary Filter
– 65% Pleated Prefilter
