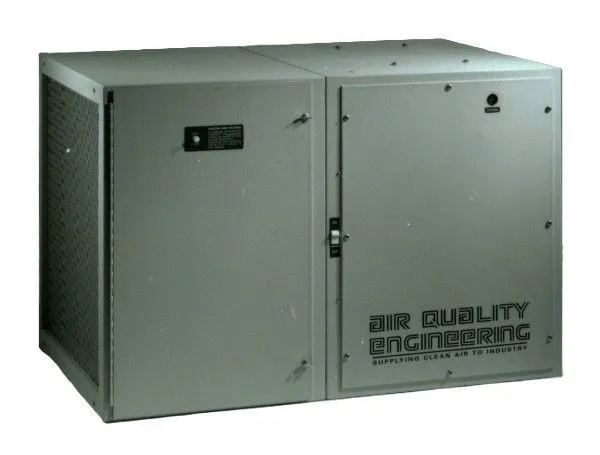

F66

Motor Type ............................... 1 HP, Maintenance-Free (Upgradable)
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 12 A
Air Flow .................... CFM .......... Up to 2,600
Filtration Efficiency ...... % ............. Up to 95% @ 3 Micron (ASHRAE 52.2)
Electronic Cell ............. – ............. 2 Cells, 218 ft² Total, 20,000 V/in, 33 lb Each
Prefilter/Postfilter ........ – ............. 1" Multi-layer Aluminum Mesh
Power Supply ............... – ............. Self-Regulating, Dual Voltage
Diagnostics ................. – ............. Test Button + System Performance Lamp
Blower ....................... – ............. Forward Curved, Belt Driven, 4,400 CFM Free Air
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Enamel Finish
Controls ..................... – ............. Motor Starter & Control Circuitry
Mounting Options ........... – ............. Mounting Bracket
Air Discharge ............... – ............. 4-Way Adjustable Louvres
Power Cord ................. – ............. 10 ft with Standard Molded Plug (Single Phase)
Sound Level .................. dB(A) ........ 73.5 @ 9 ft / 70 @ 15 ft
Dimensions (L×W×H) ....... in ............ 41 x 27.5 x 26.5
Weight ...................... lb ............. 278 (Installed) / 325 (Shipping)
Finish ....................... – ............. Powder-Coated Textured Enamel

Standard Features
– Dual Electronic Cells
– Motor Starter & Control Circuitry
– 4-Way Adjustable Louvres
– Mounting Bracket
– 3-Year Parts Warranty

Optional Features
– 2 HP / 3 HP Motor Upgrade
– High Static Fans
– Source Capture Plenum
– Drain Kit
– Impinger Assembly
– Media Prefilter Pad & Frame
– Source Capture Arms
– Double Pass Electronic Cells
– Cell Cleaner & Cell Coat
