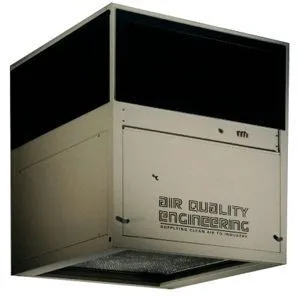

F62B

Motor Type ............................... ¾ HP, Ball Bearing, PSC Motor (Thermally Protected)
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 3.0 to 8.7 A
Alternate Power ............ V/Hz/Ph ...... 208–240 / 60 / 1 – 2.8 to 3.9 A
Air Flow .................... CFM .......... Low: 1900 / Med: 2200 / High: 2500
Filtration Efficiency ...... % ............. Up to 95% (ASHRAE 52-76)
Electronic Cell ............. – ............. 2 Cells, 218 ft² Total, 20,000 V/in, 33 lb Each
Prefilter/Postfilter ........ – ............. 1" Multi-layer Aluminum Mesh
Filter Access ............... – ............. Hinged Panel
Power Supply ............... – ............. Self-Regulating, Dual Voltage Module
Diagnostics ................. – ............. Test Button + System Performance Lamp
Blower ....................... – ............. Direct Drive, Maintenance-Free
Cabinet Material ........... – ............. 16-Gauge Steel Frame, Textured Enamel
Controls ..................... – ............. Motor Starter & Control Circuitry
Mounting Options ........... – ............. Floor or Wall Mount
Air Discharge ............... – ............. 4-Way Adjustable Louvres
Sound Level .................. dB(A) ........ Low: <60 / Med: 60 / High: 69 @ 9 ft
Dimensions (W×H×D) ....... in ............ 29.5 x 31 x 31.5
Weight ...................... lb ............. 225 (Installed) / 280 (Shipping)
Finish ....................... – ............. Baked Enamel, Powder-Coated Steel

Standard Features
– Dual Electronic Cell System (218 ft² Surface Area)
– 4-Way Adjustable Discharge Louvres
– Maintenance-Free Direct Drive Motor
– Motor Starter & Control Circuitry
– 3-Year Parts Warranty
– ETL Safety Listed

Optional Features
– Intake Hood
– Remote Control Switch
– Media Prefilter Pad & Frame
– Drain Pan (Captures Oil Mist)
