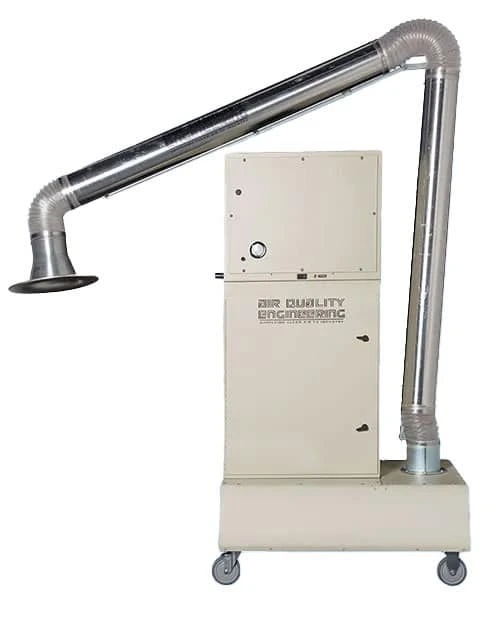

F33V

Motor Type ............................... 1 HP, Sealed Ball Bearing
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 13 A
Alternate Power ............ V/Hz/Ph ...... 208–240 / 60 / 1 – 6.6 A
Air Flow .................... CFM .......... Up to 1,250
Filtration Efficiency ...... % ............. Up to 99.5% @ 3 Micron (ASHRAE 52.2)
Electronic Cell ............. – ............. 109 ft², 20,000 V/in Gradient, 33 lb
Prefilter/Postfilter ........ – ............. 1" Multi-layer Aluminum Mesh
Filter Access ............... – ............. Hinged Panel
Power Supply ............... – ............. Self-Regulating, Dual Voltage
Diagnostics ................. – ............. Test Button + System Performance Lamp
Blower ....................... – ............. Forward Curved, Belt Driven Centrifugal
Blower Capacity ............ CFM .......... 2,250 (Free Air)
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Enamel Finish
Controls ..................... – ............. Motor Starter & Control Circuitry
Mounting Options ........... – ............. Heavy-Duty Locking Casters
Arm Assembly ................ – ............. 13' Long x 6" Dia. Solid Arm (Ext. Supported)
Air Discharge ............... – ............. Optional Adjustable Louvres
Power Cord ................. – ............. 10 ft with Standard Molded Plug
Sound Level .................. dB(A) ........ 68 @ 9 ft / 66 @ 15 ft
Dimensions (L×W×H) ....... in ............ 41 x 31 x 58 (97 w/ Arm Extended)
Weight ...................... lb ............. 270 (Installed) / 320 (Shipping)
Finish ....................... – ............. Powder-Coated Enamel

Standard Features
– Heavy Duty Electronic Cell
– 13' Externally Supported Extraction Arm (6" Dia.)
– 1" Aluminum Mesh Pre/Post Filter
– Built-In Sump w/ Optional Drain
– 3-Year Parts Warranty

Optional Features
– 8" Diameter 13' Arm
– LED Hood Light + Hood Controls
– 1.5 HP Motor Upgrade
– Media Pad Prefilter
– Cell Cleaner Concentrate
– Cell Wash Container
– Cell Coat
