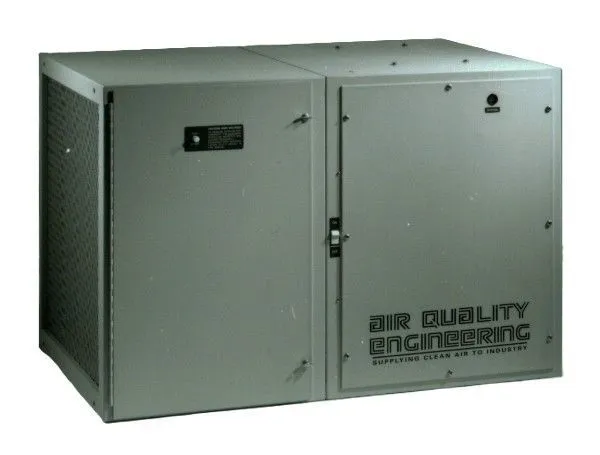

F33

Motor Type ............................... 1 HP, Maintenance-Free
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 12 A
Alternate Power ............ V/Hz/Ph ...... 208–240 / 60 / 1 – 6 A
Air Flow .................... CFM .......... Up to 1,250
Filtration Efficiency ...... % ............. Up to 99.5% @ 3 Micron (ASHRAE 52.2)
Electronic Cell ............. – ............. 109 ft², 20,000 V/in Gradient, 33 lb
Prefilter/Postfilter ........ – ............. 1" Multi-layer Aluminum Mesh
Filter Access ............... – ............. Hinged Panel
Power Supply ............... – ............. Self-Regulating, Dual Voltage
Diagnostics ................. – ............. Test Button + System Performance Lamp
Blower ....................... – ............. Forward Curved, Belt Driven Centrifugal
Blower Capacity ............ CFM .......... 2,250 (Free Air)
Cabinet Material ........... – ............. 16-Gauge Welded Steel, Enamel Finish
Controls ..................... – ............. Motor Starter & Control Circuitry
Mounting Options ........... – ............. Mounting Bracket Included
Air Discharge ............... – ............. 4-Way Adjustable Louvres
Power Cord ................. – ............. 10 ft with Standard Molded Plug
Sound Level .................. dB(A) ........ 68 @ 9 ft / 66 @ 15 ft
Dimensions (L×W×H) ....... in ............ 41 x 14.5 x 26.5
Weight ...................... lb ............. 195 (Installed) / 235 (Shipping)
Finish ....................... – ............. Baked Enamel Coated

Standard Features
– Motor Starter & Control Circuitry
– Adjustable Louvres
– Mounting Bracket
– 3-Year Parts Warranty

Optional Features
– Source Capture Plenum
– Drain Kit
– Impinger Assembly
– Media Prefilter Pad & Frame
– Cell Cleaner
– Cell Coat
