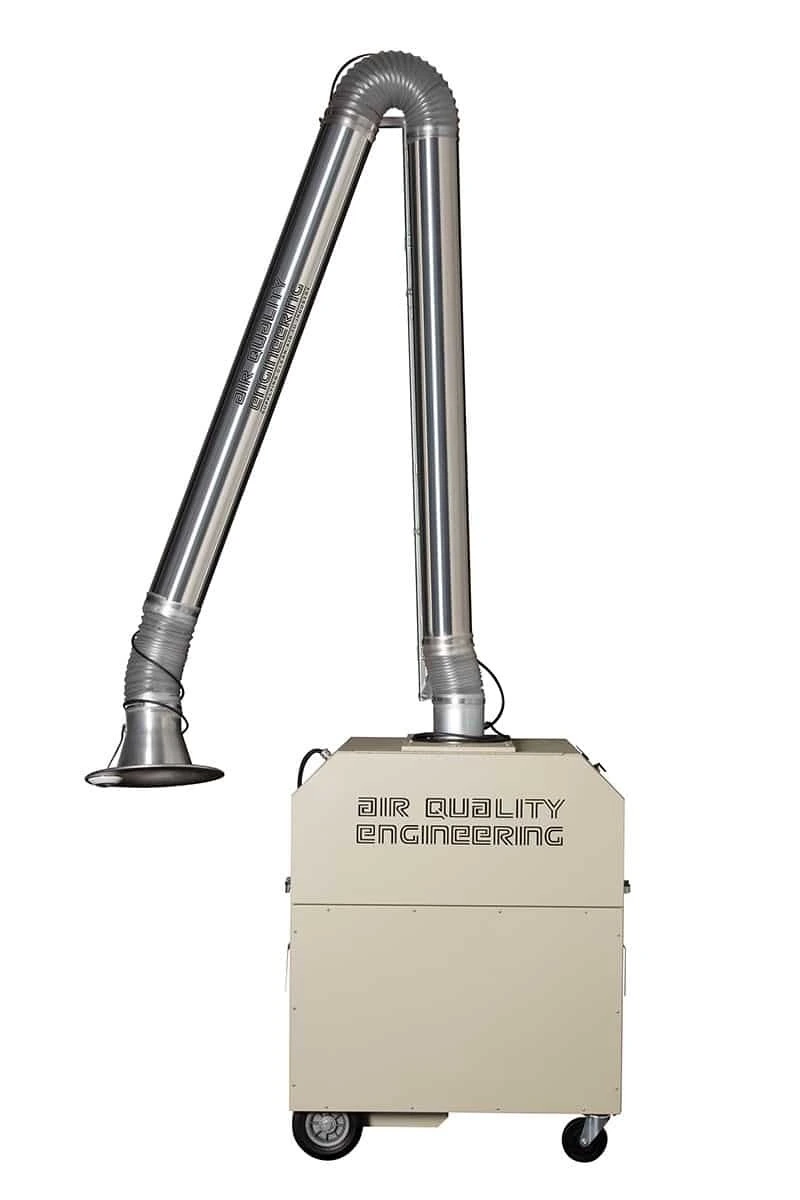

AQE 2000

Motor Type ............................... Thermally Protected
Power Input ............... V/Hz/Ph ...... 120 / 60 / 1 – 14 A
Alternate Power ............ V/Hz/Ph ...... 208–240 / 60 / 1 – 8 A
Air Flow .................... CFM .......... 1100
Filtration Efficiency ...... % ............. 99.8% @ 0.5 Micron (MERV 15)
Filter Media Area .......... ft² ........... 382
Filter Cleaning ............. – ............. Reverse Pulse Jet (80–120 psi, ¼" NPT)
Noise Level ................. dB(A) ........ 73 @ 6 ft
Inlet Arm .................... in ............ 13' Long x 6" or 8" Diameter
Arm Type .................... – ............. Externally Supported, 360° Rotation
Hood .......................... – ............. Aluminum, Flanged, Vert/Horiz Adjustable
Blower ....................... – ............. Direct Drive, Backward Incline
Cabinet Material ........... – ............. 16-Gauge Welded CRS Steel
Controls ..................... – ............. Integrated Circuitry w/ Thermal Protection
Mounting Options ........... – ............. Mobile – Caster Mounted
Caster/Wheels .............. – ............. 8" Semi-Pneumatic Front / Swivel Rear
Dimensions (H×W×D) ....... in ............ 46 x 28.5 x 37
Weight ...................... lb ............. 400 (450 Shipping)
Finish ....................... – ............. Powder-Coated Steel
